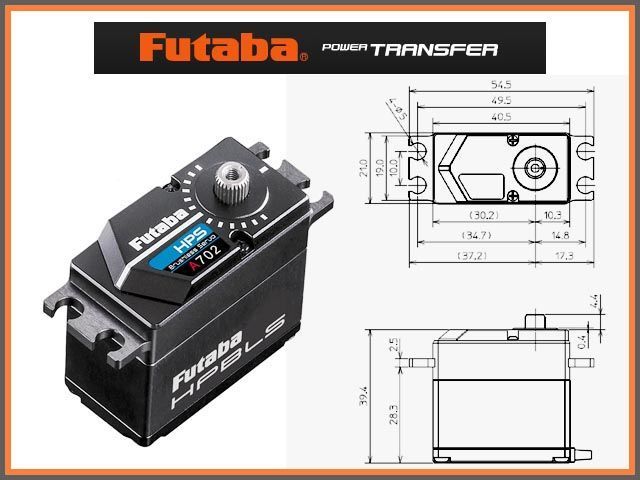

・3-stage metal gears

・High-strength metal final-stage gears

・Aluminium upper/centre/lower chassis

・S.BUS system

・New HPS motor

・High-frequency control

・Speed: 0.12sec/60°(7.4V) / 0.13sec/60°(6.6V)

・Torque: 74.0kgf・cm(7.4V) / 68.0kgf・cm(6.6V)

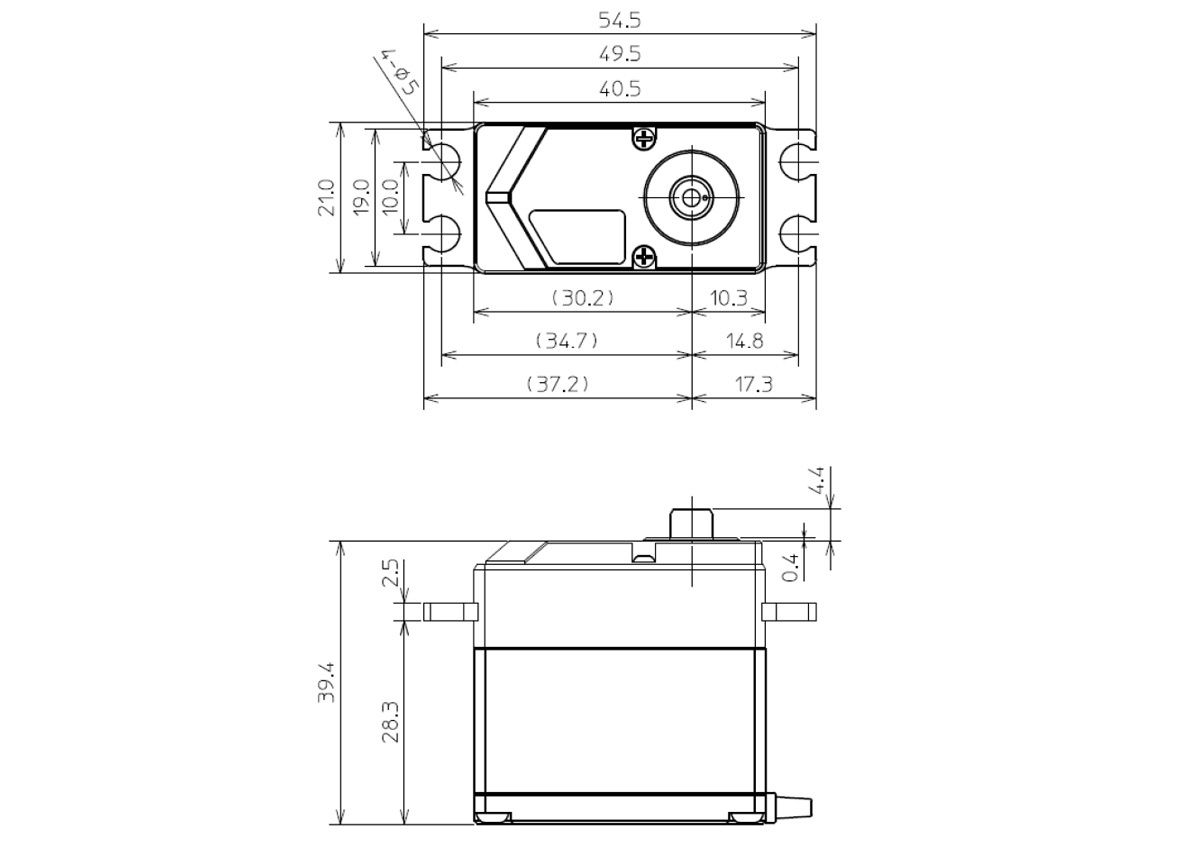

・Dimensions/Weight: 40.5×21.0×39.4 mm / 82 g

・25T output gear

・ Brushless motor type

・Digital electronics

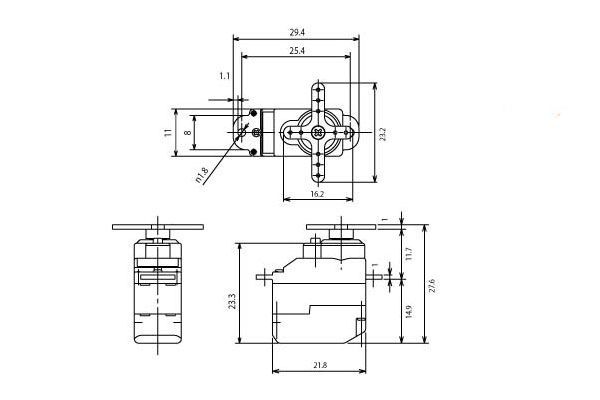

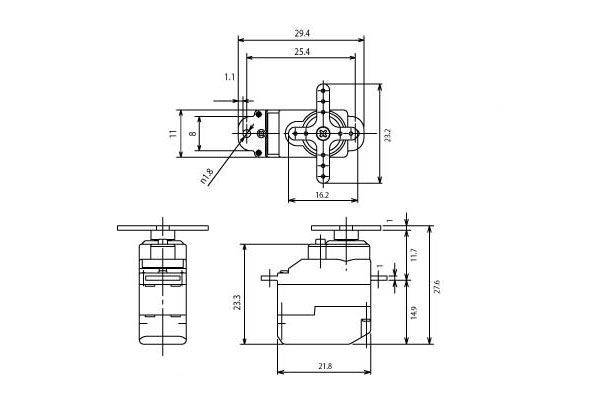

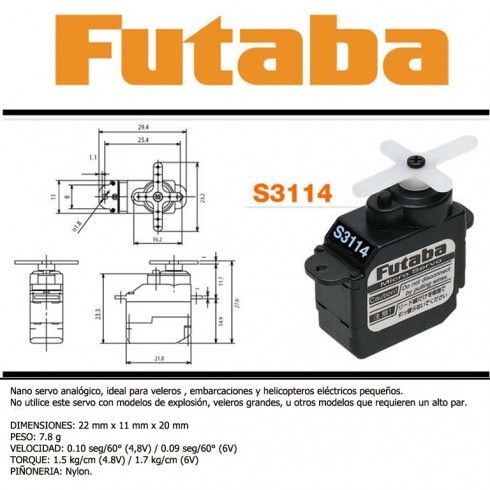

・Size: 21.8 x 19.8 mm

・Speed: 0.1 sec/60° at 4.8 V ;1.7 kg/cm below 6V

・ Tightening torque: 1.5 kg/cm at 4.8 V; 1.7

      Kg/cm below 6V

・Weight: 7.8 g

・Nylon pinion

・Power supply 4.8 V or 6 V

・Dimensions: 21.8 x 11 x 19.8 mm

・Speed: 0.12 sec/60° sous 4.8 V

・Torque: 1.2 kg sous 4.8 V

・Weight: 9 g

• (L x W x H) 22.1 x 10.9 x 20.1 mm
• Length 22.1 mm
• Width 10.9 mm
• Height 20.1 mm
• Weight 9 g
• Torque 12 Ncm
• Stroke time at 4.8 V 0.12 s (60°)
• Transmission plastic
• Bearing type plain bearing

Servo technology Analogue servo

Futaba coupling system

Voltage level

Low voltage

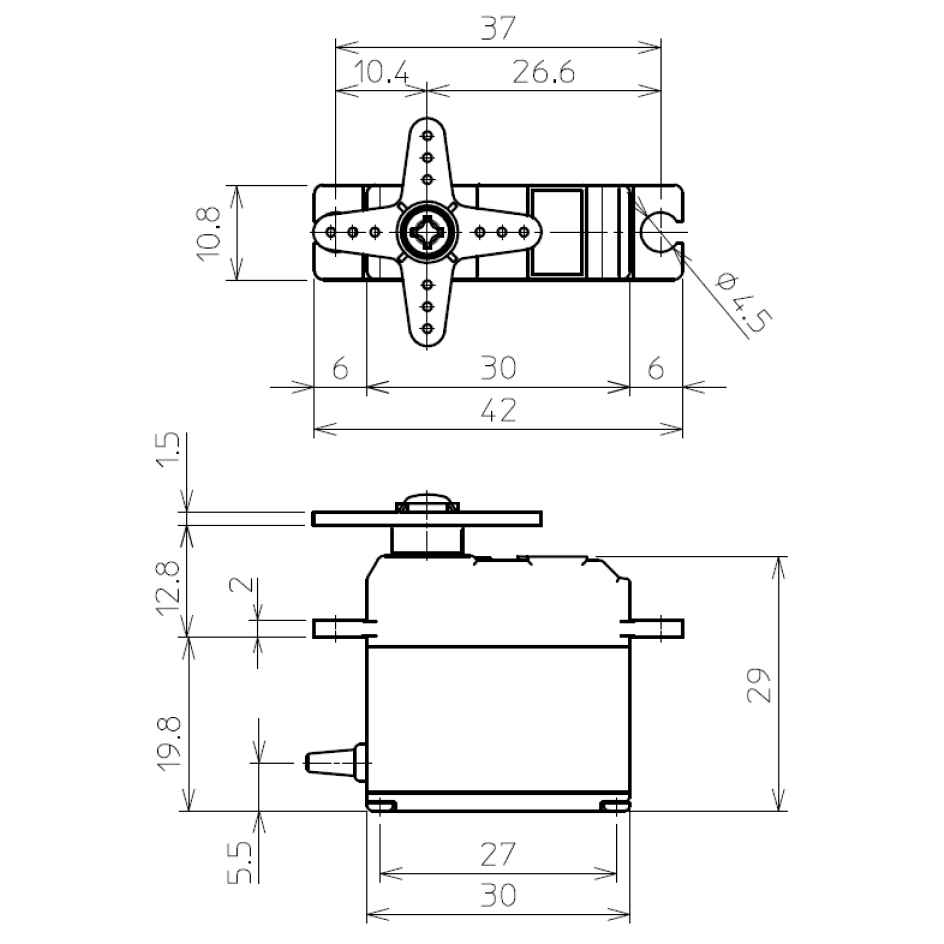

・Size: 28 x 13 x 29.7 mm

・Speed: 0.15 sec/60° at 4.8 V

・Torque: 2.8 kg cm at 4.8 V (38.9 oz in at 4.8 V)

・Weight: 17.0 g (0.60 oz)

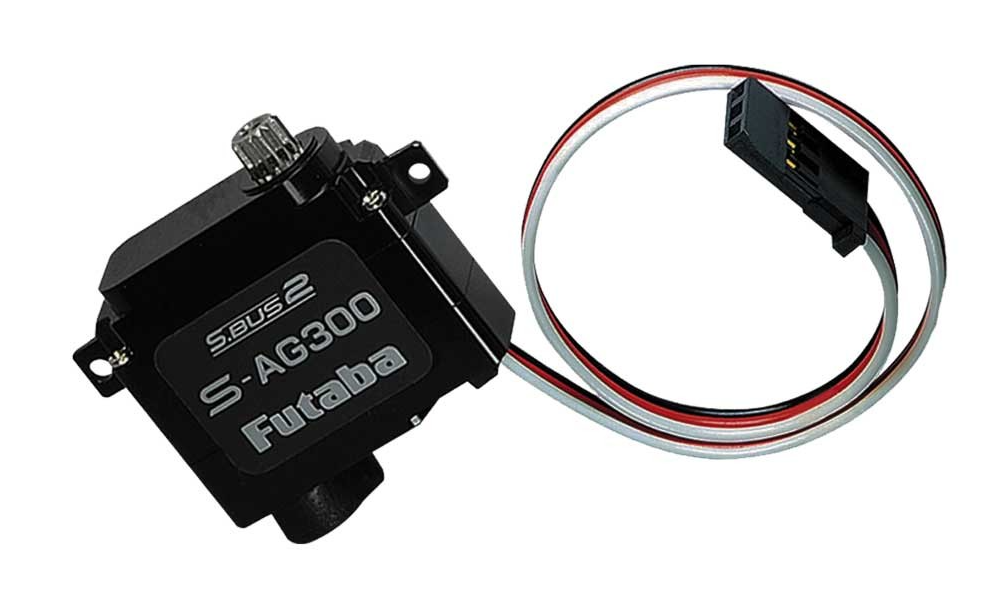

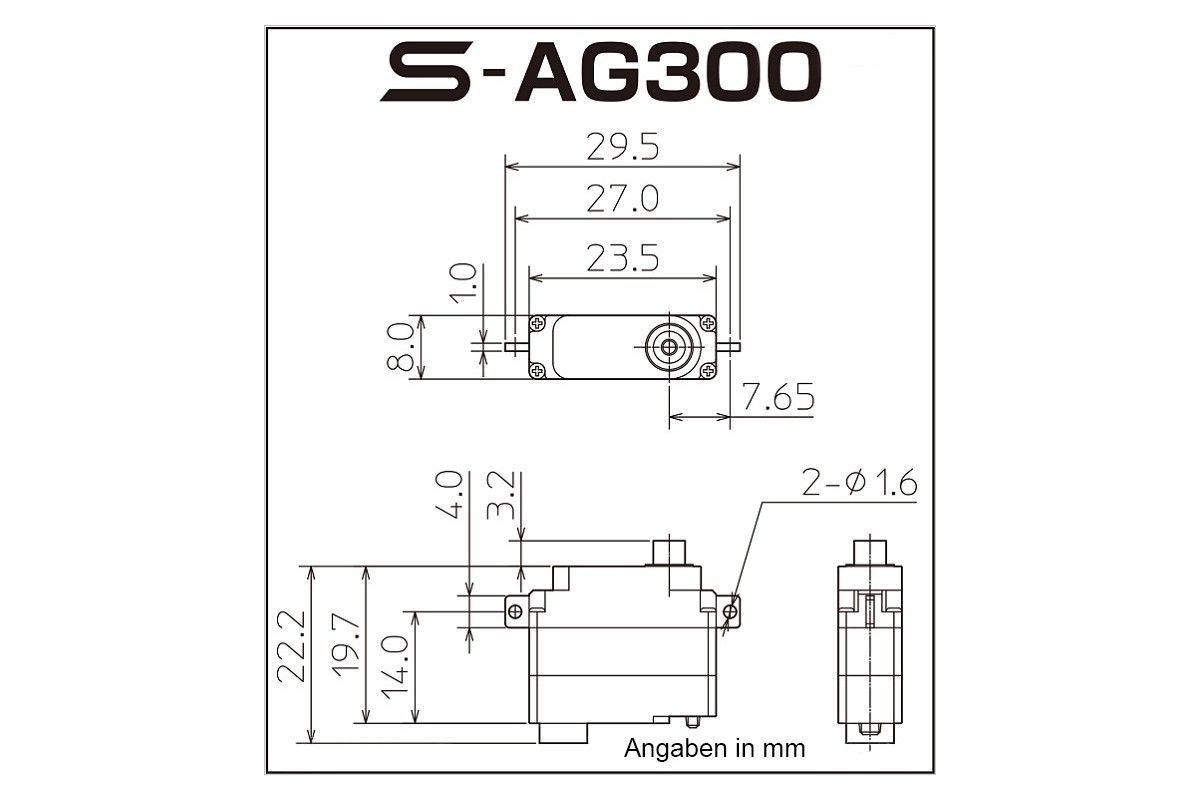

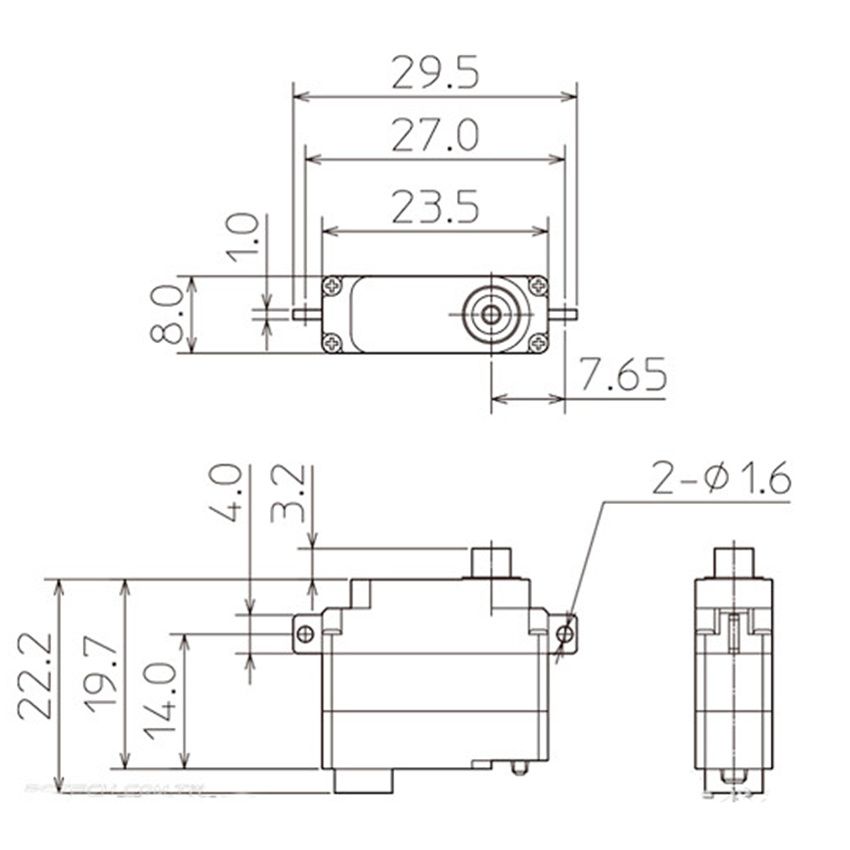

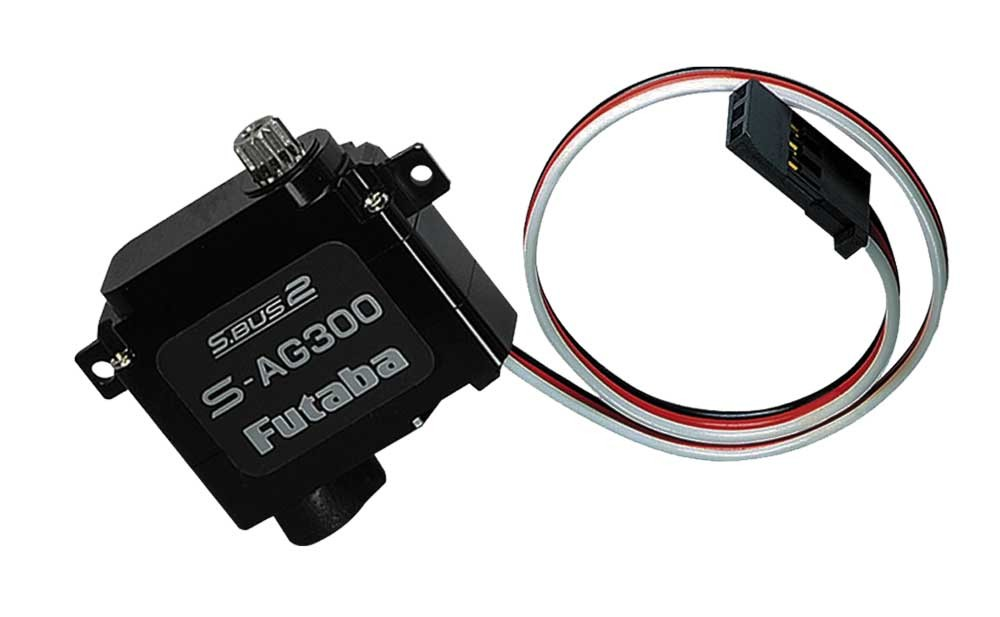

SERVO S-AG300 2.5kG 0.065 7.4V ALIANTS

High-performance ultra micro servo

For Glider/F3K

Programmable/HV coreless servo.

Programmable and compatible with S.Bus and S.Bus2 systems.

Can be connected to a PC using the USB adapter CIU-2/-3 sold separately.

Metal end gear

Aluminium housing

Specifications

Speed (3.8-7.4)V sec/60º 0.13/0.065

Torque (3.8-7.4)V Kg*cm 1.5/2.5

Dimensions mm 23.5x8.0x19.7

Weight g 10.8

Operating voltage DC V 3.8-8.4

Digital servo control S.Bus - HV

Speed: 0.17s/60° 6.6V - 0.15s/60° 7.4V

Force: 5.8Kgf at 6.6V - 6.5Kgf at 7.4V

Dimensions: 40x20x38.1 mm

Weight: 49 gr.

Power supply: 6.0V to 7.4V

Do not use with dry batteries

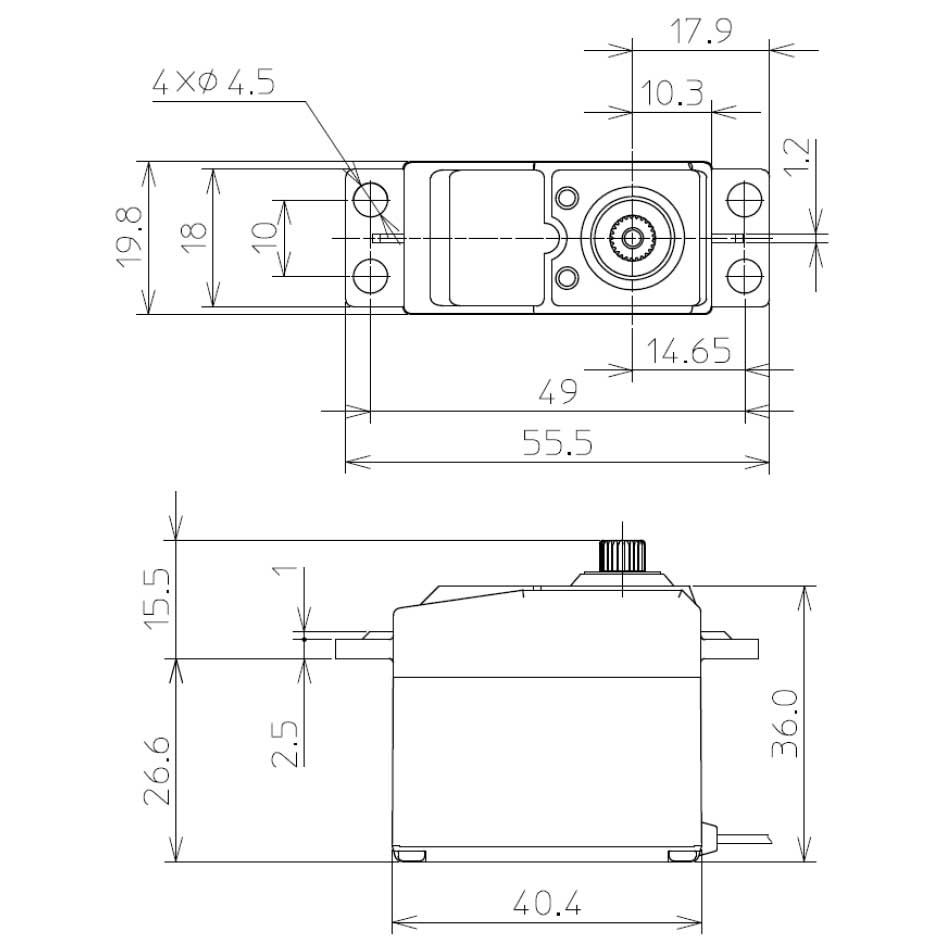

・Speed: 0.19 sec/60°(6.0 V) / 0.23 sec/60°(4.8 V)

・Torque: 4.1 kgf・cm(6.0 V) / 3.2 kgf・cm(4.8V)

・Dimensioni/Peso: 40.4×19.8×36.0mm/36g

*Power supply: 4.8-6.0V

・All resin gears

・S.BUS system

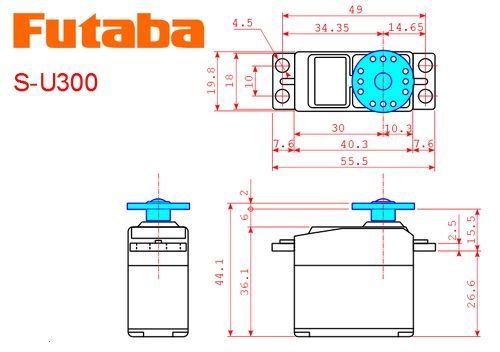

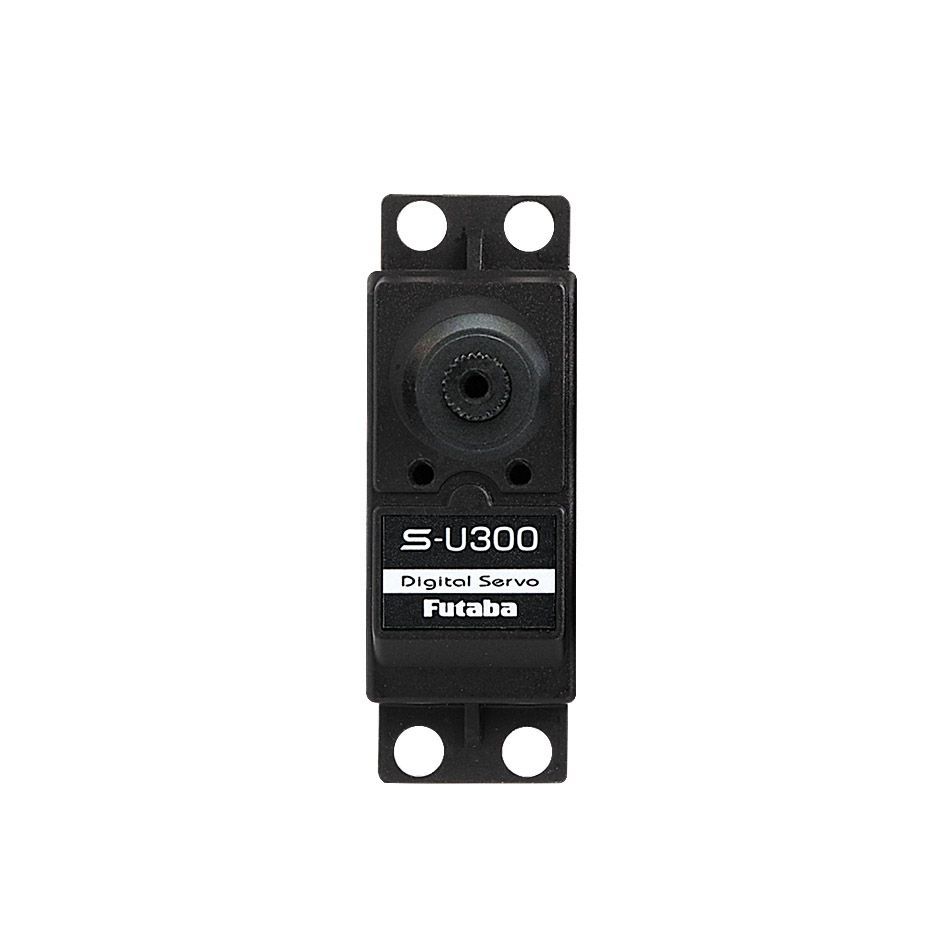

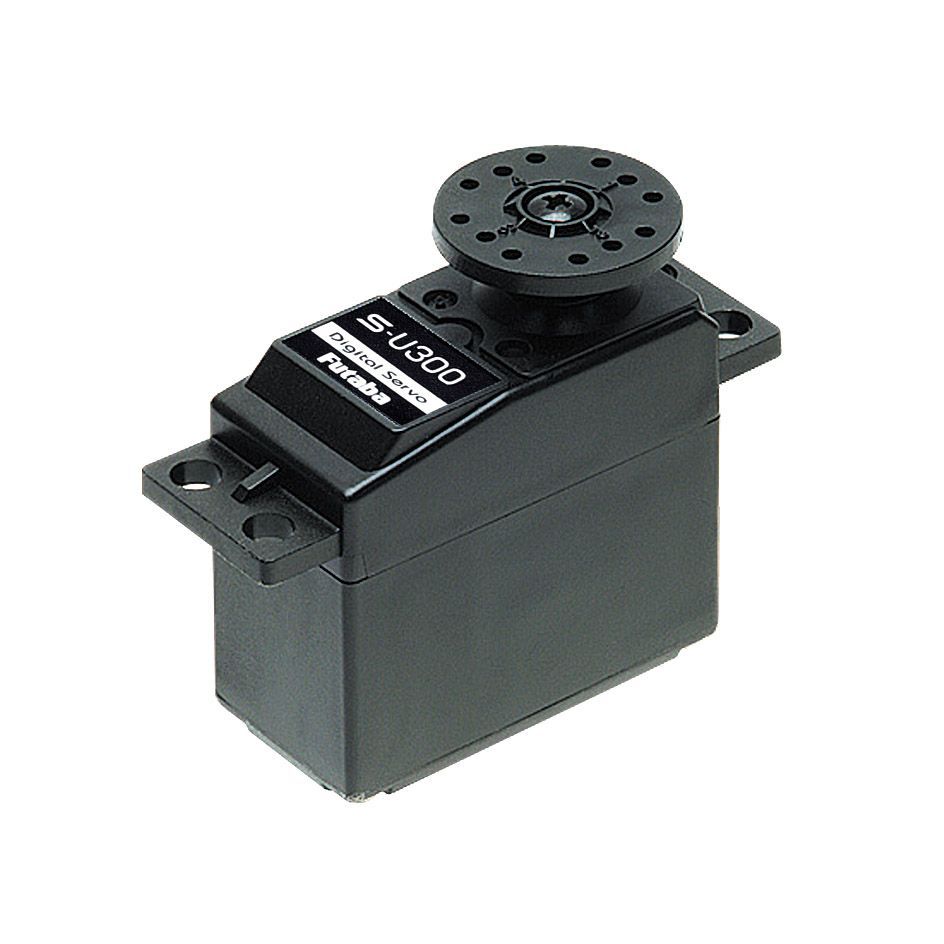

SERVO S-U300

FUTABA's S.BUS2 standard servo.

The S-U300 servo replaces previous Futaba servos such as: S3003, S148, FS100 and S3005.

Features:

Powerful S.BUS2 digital servo with plastic gears

Robust plastic housing

High resolution

High precision

Low-wear potentiometer with indirect drive

Specifications

Type Digital

Gear type Nylon

Speed sec/60° (4.8-6.0)V 0.23-0.19

Torque Kg*cm (4.8-6.0)V 3.5-4.5

Dimensions mm 40.4x19.8x36.0

Weight g 36.0

Futaba connector

・All resin gears

・S.BUS system

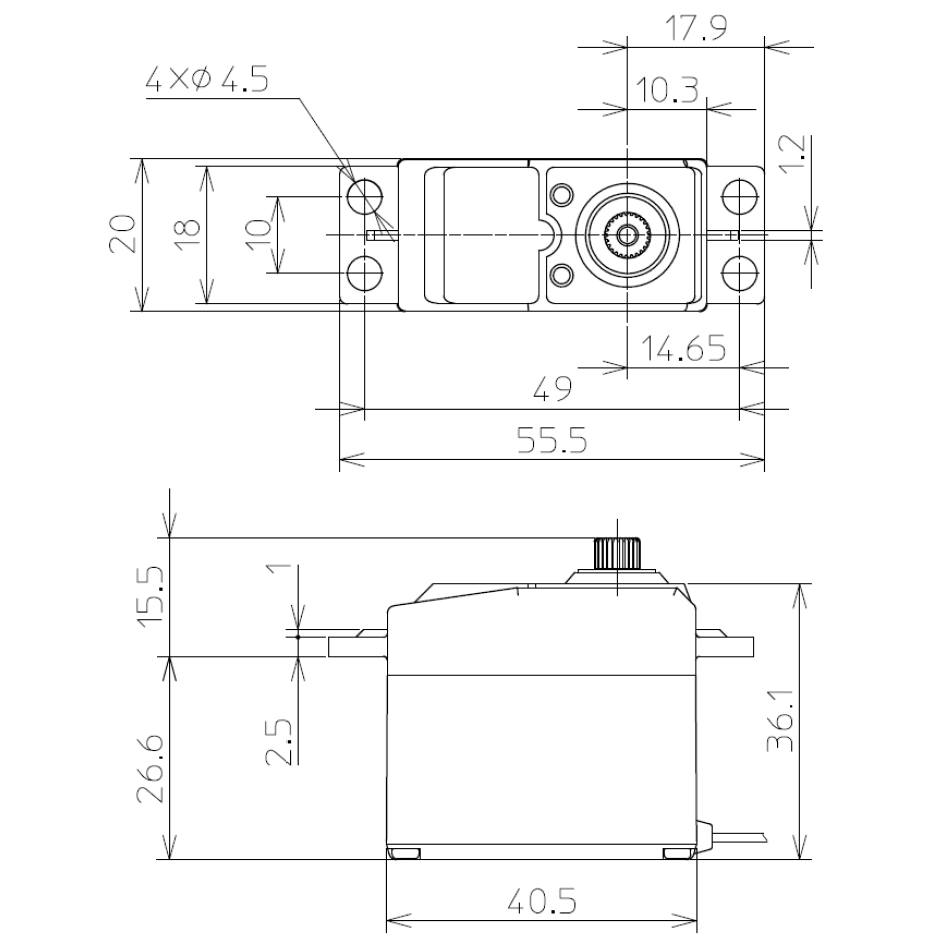

・Speed: 0.16 sec/60°(7.4 V) / 0.18 sec/60°(6.6 V)

・ Torque: 3.9 kgf・cm(7.4 V) / 3.5 kgf・cm(6.6V)

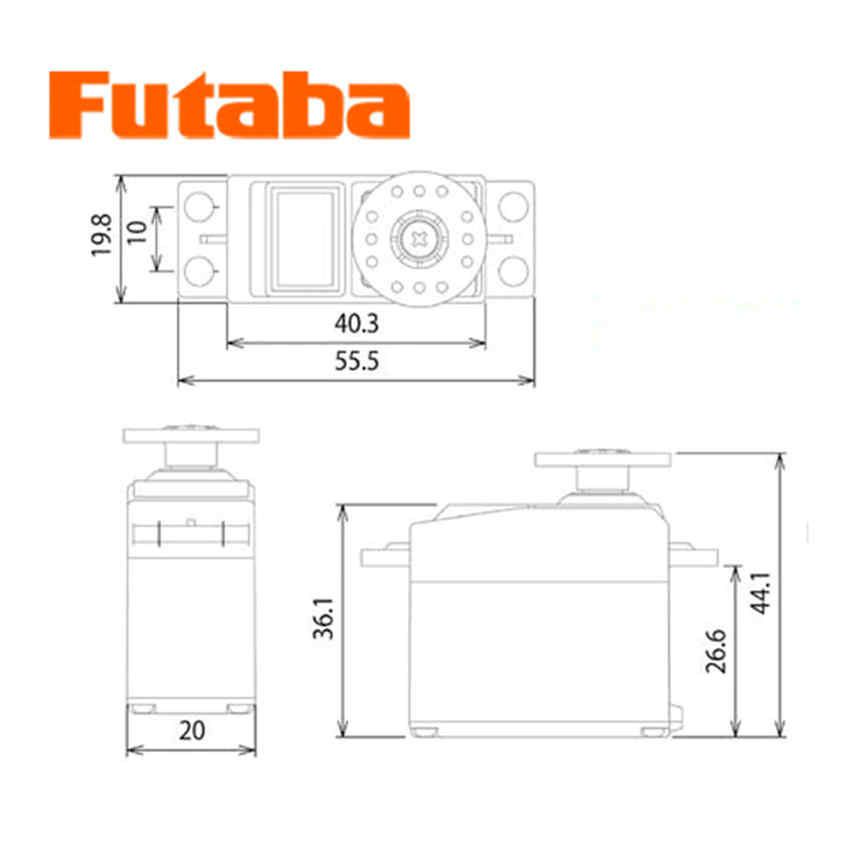

・Dimensions/Weight: 40.5×20.0×36.1 mm/36 g

SPEED:

0.18 sec/60°at 6.6V

0.16 sec/60° at 7.4V

TORQUE:

3.5 kgf/cm at 6.6V

48.6 ozf/in at 6.6V

3.9 kgf/cm at 7.4V

54.2 ozf/in at 7.4V

SIZE:

40 mm x 20 mm x 36.1 mm

1.59 in x 0.79 in x 1.42 in

WEIGHT:

36 g

1.30 oz

Plastic Gearing

6mm/25T Spline

3Pole Cored Motor

Digital servo

The power supply is 4.8V and dry batteries cannot be used.

・2-3 phase metal gear

・Metal final gear

・Speed: 0.24 sec/60°(4.8 V)

・Torque: 3.7 kgf・cm(4.8 V)

・Dimensions/Weight: 30.0 x 10.8 x 29.0 mm / 23 g

・Speed: 0.10 sec/60°(4.8 V) / 0.09 sec/60°(6.0 V)

・Torque: 1.5 kgf・ cm(4.8 V) / 1.7 kgf・ cm(6.0 V)

・Dimensions/Weight: 21.8 x 11.0 x 19.8 mm/7.9 g

A digital servo

The power supply is 4.8-6.0 V.

・All-resin gear

・Speed: 0.13 sec/60°(7.4 V) / 0.14 sec/60°(6.6 V)

・Torque: 7.9 kgf・ cm(7.4 ) V) / 7.1 kgf cm(6.6 V)

Dimensions/Weight: 40.0 x 20.0 x 38.1 mm / 39 g

・All resin gears

・S.BUS system

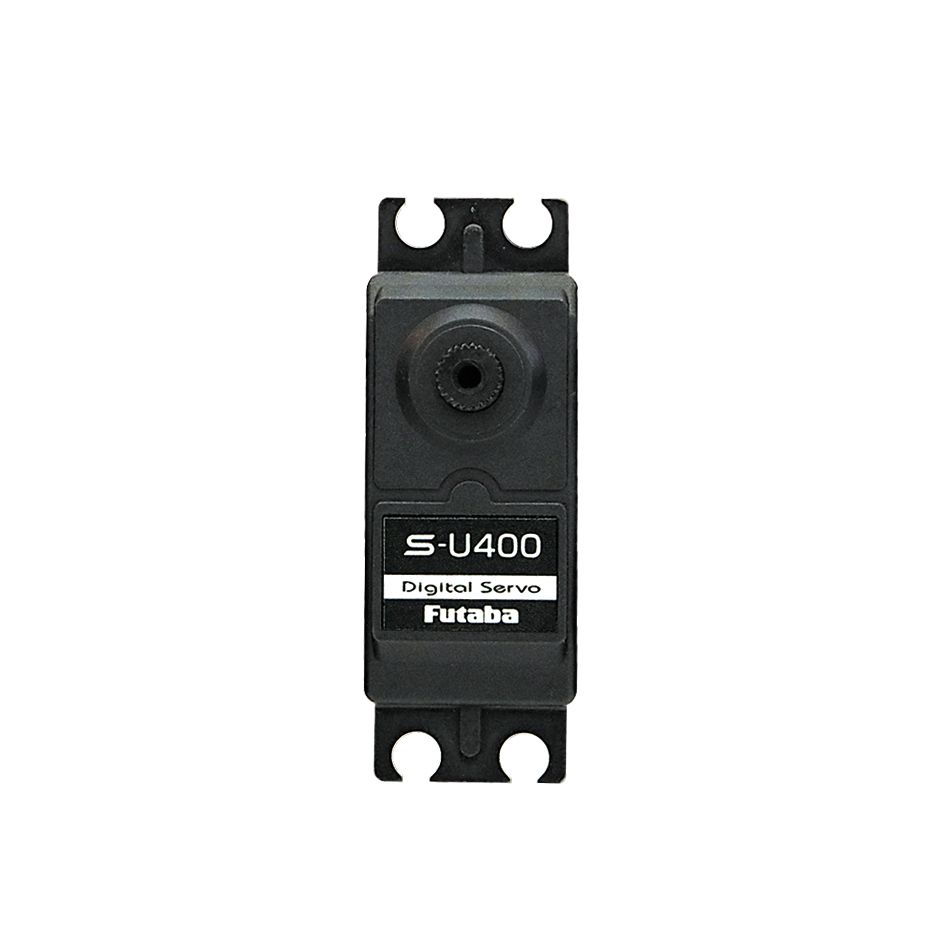

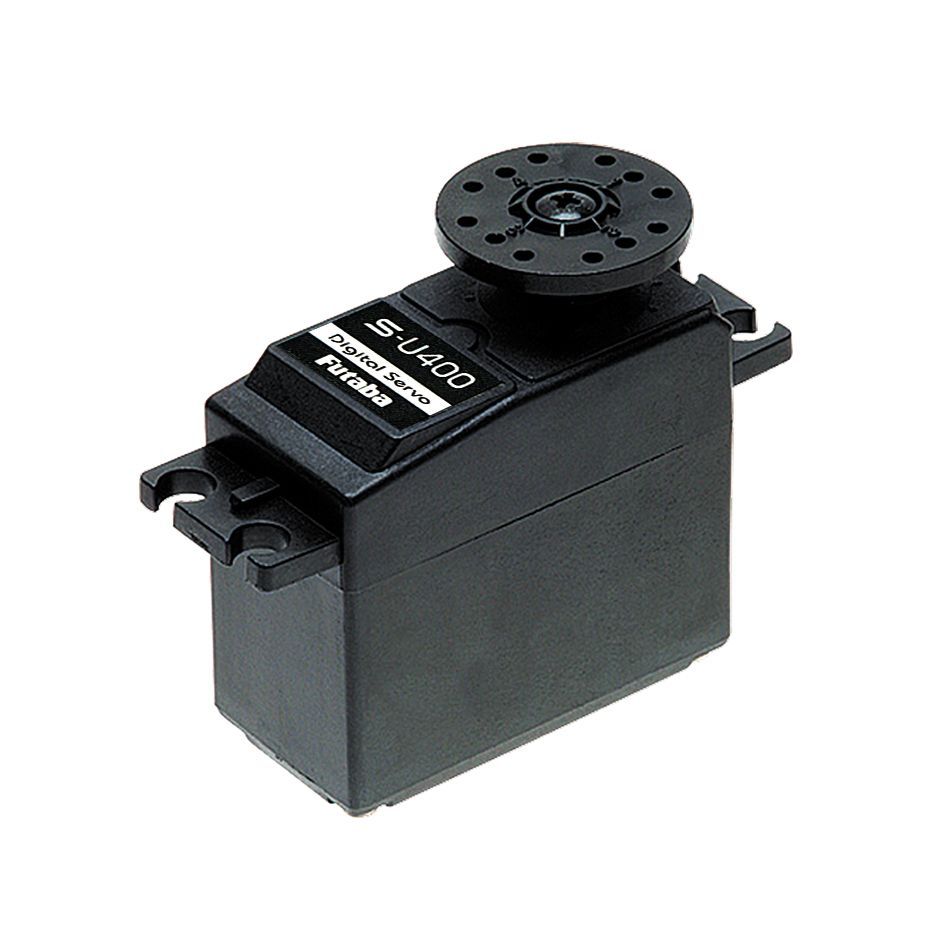

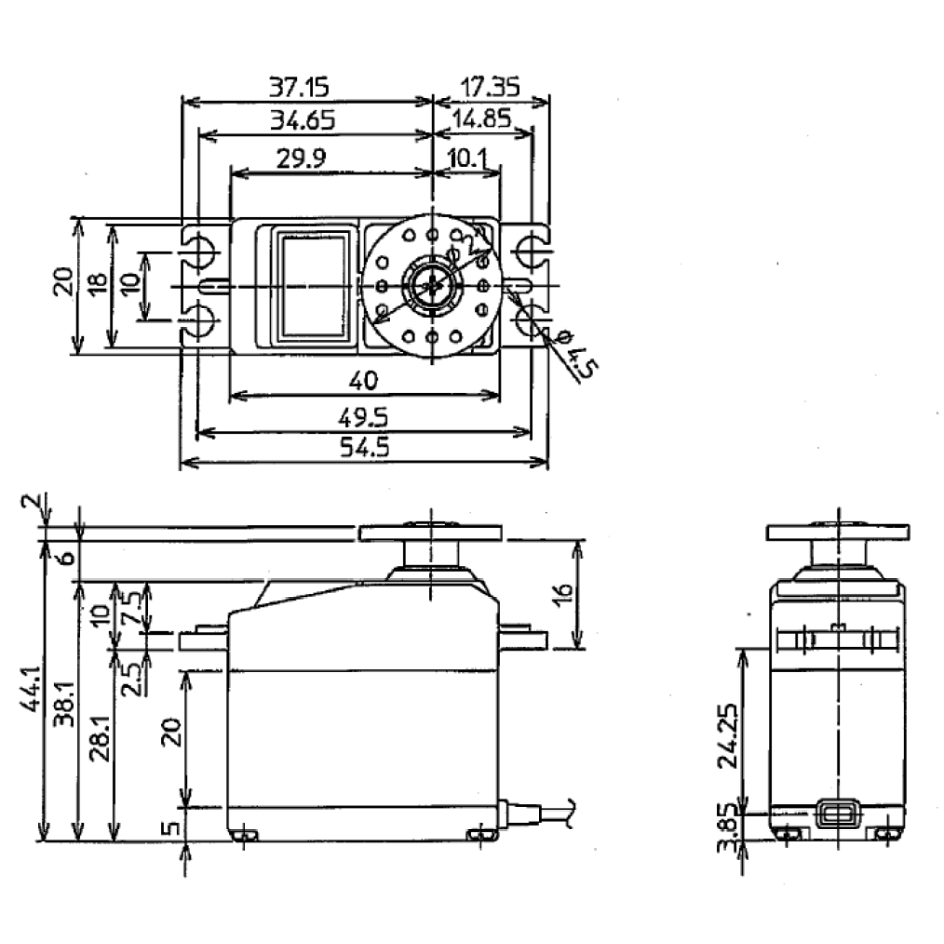

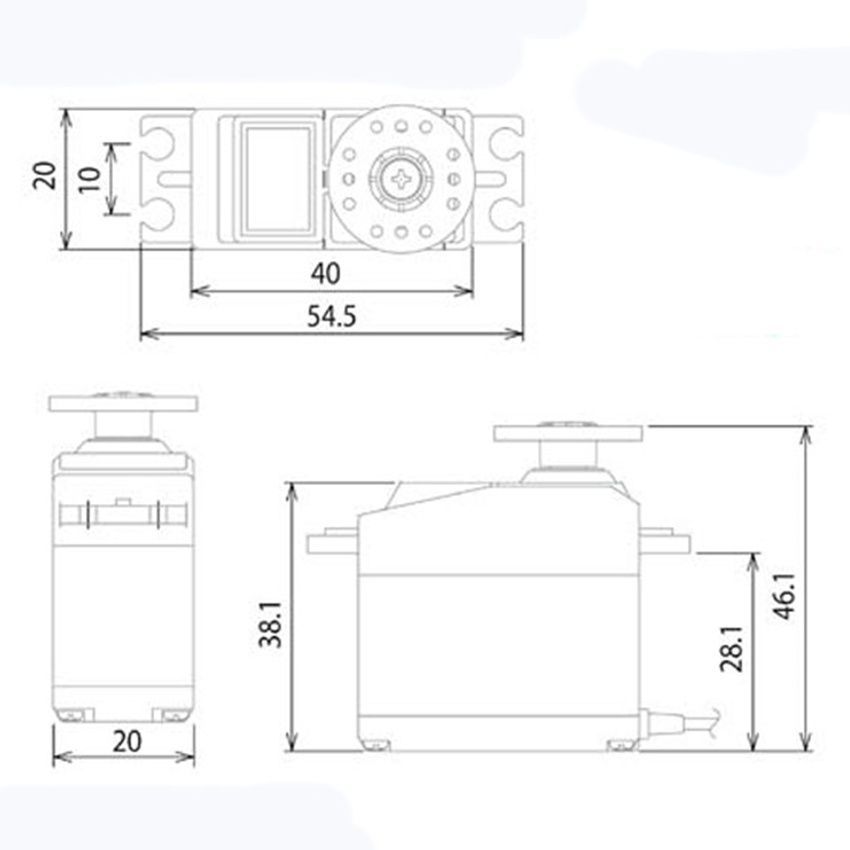

SERVO S-U400 8Kg. 0.14 7.4v

S-BUS2 PROGRAMMABLE STANDARD DIGITAL SERVO

Features

Operating voltage V 6.0-7.4

Speed sec/60º (6.0-6.6-7.4)V 0.15-0.14-0.13

Torque Kg*cm (6.0-6.6-7.4)V 6.5-7.1-7.9

Motor 3 poles cored

Gears Plastic

Bearings 1BB+1MB

Dimensions mm 40.0x38.1x20.0

Weight g 39,0

FEATURES

- Powerful S.BUS2 digital servo with plastic gears

- High voltage

- Low-wear potentiometer

- Robust plastic housing

- High resolution

- High positioning accuracy

The FUTABA S-U400 is an economical S.BUS2 HV universal servo. With a drive force of 8 kg cm and a drive speed of 0.14 s / 60°, the S-U400 ranks above the S-U300 in terms of performance. Due to its performance values, it is predestined for applications in RC cars, boats and model aircraft. The previous servo types S3010, S3152 and S3072HV are replaced with the S-U400.

Programmable via S.BUS2 technology. Of course, all S.BUS2 servos can be connected to conventional receivers with PWM modulation. The servos can be addressed in several ways:

1. With the handy SBC-1 programmer

2. On the PC with the CIU-3 USB adapter

3. At the S.BUS connection of the transmitter

The following parameters can be set

- S.BUS channel assignment

- Servo reversing

- Servo type (normal/retractable landing gear)

- Soft start (on/off)

- Mode selection in case of no hold or free signal

- Soft Servo Run (On / Off)

- Servo Position (servo tester)

- Servo centre adjustment +/- 300 µs (approx. 30 degrees)

- Servo speed, 0.39 - 9 seconds for 45 degrees

- Dead zone (dead band) setting

- Adjustment of left and right servo travel separately, approx. 50 - 175%.

- Starting power

- Damping

- Holding power

- ID storage

Technical characteristics :

Dimensions: 40x20x34.8 mm

Weight: 45g

Speed: 0.15 sec/60° (4.8 v)

Torque: 9.6 kg/cm (4.8 v)

2 bearings

metal pinions

General characteristics of servos with brushless motor

- At least 5 times longer life than a motor with brushes.

- 30% faster response time.

- Greater shock and vibration resistance.

- Smoother movements.

- Same power required by brush motors.

- Same size as standard servos.

- Double bearing for greater precision and smoothness.

- Samarium-cobalt magnets for more power.

Terms used to describe features (not available on all BLS servos)

Waterproof

Water-protected housing seals with rubber gaskets that are particularly suitable for use in Buggy and RG and Track cars.

Metal gear

Recommended where very hard knocks put the transmission under severe strain.

Ball Bearing

They ensure great precision by eliminating gear backlash.

Aluminium centre case

Ensures high heat dissipation and shock resistance.

Technical data

Dimensions: 40.0x20x35.0mm

Weight: 44 g

Speed: 0.15 sec/60° (4.8V)

Torque: 8.8 Kg.cm (4.8V)

Features

Bearing 2

Metal gear NO

Waterproof YES

Central case Nylon

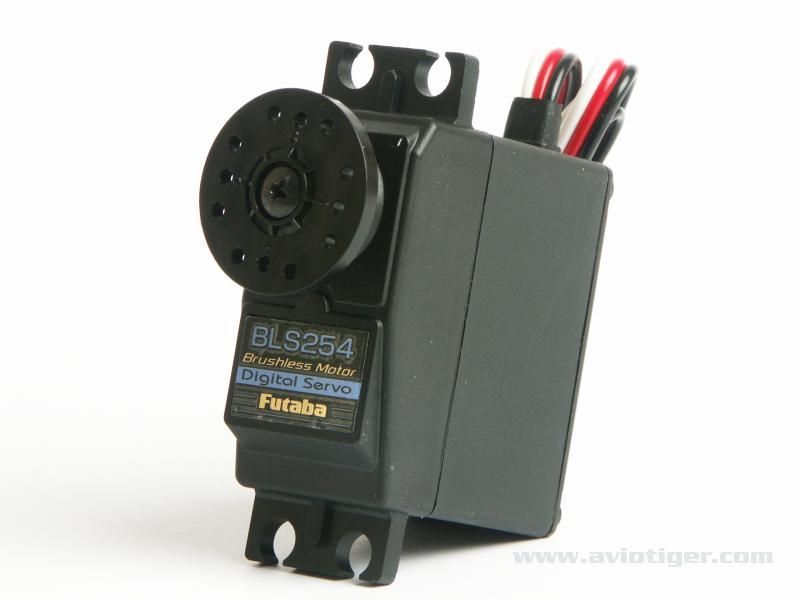

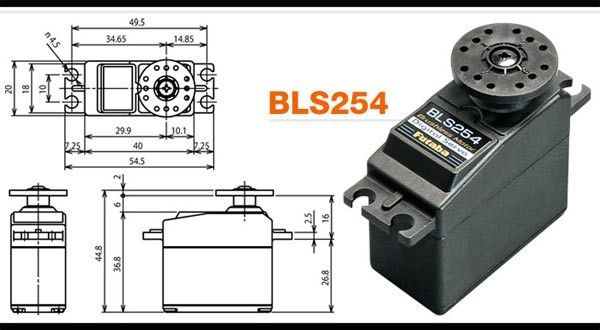

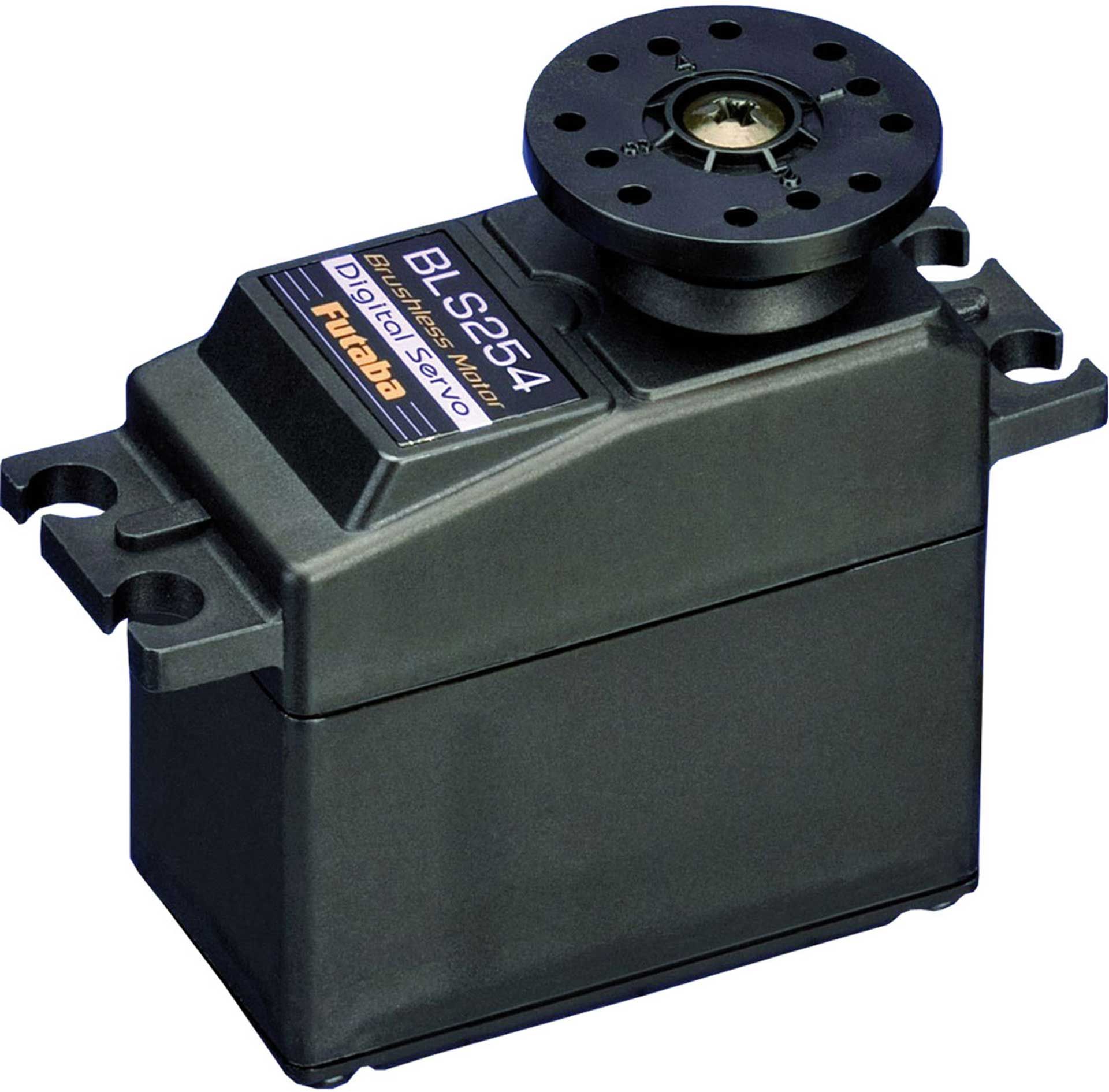

Brushless Servo BLS254 4.8 V 3.8 kg 0.06 sec.

General characteristics of servos with Brushless motor

- At least 5 times longer life than a motor with brushes

- 30% faster response time

- Greater shock and vibration resistance

- Smoother movements

- Same power required by brush motors

- Same size as standard servos

- Double bearing for greater precision and smoothness

- Samarium-Cobalt magnets for more power

Waterproof

Water-protected casing seals with rubber gaskets particularly suitable for use in Buggy and RG and Track cars

Ball bearing

Ensures high precision by eliminating gear backlash.

Product specifications:

 Category: Gyro High-Speed

 Torque (4.8 V): 3.8 kg/cm

 Speed (4.8 V): 0.06 sec/60

 Dimensions: 40x20x36.8 mm

 Weight: 58 gr

 Gears: Metal

 Bearings: 2

 Motor: Brushless

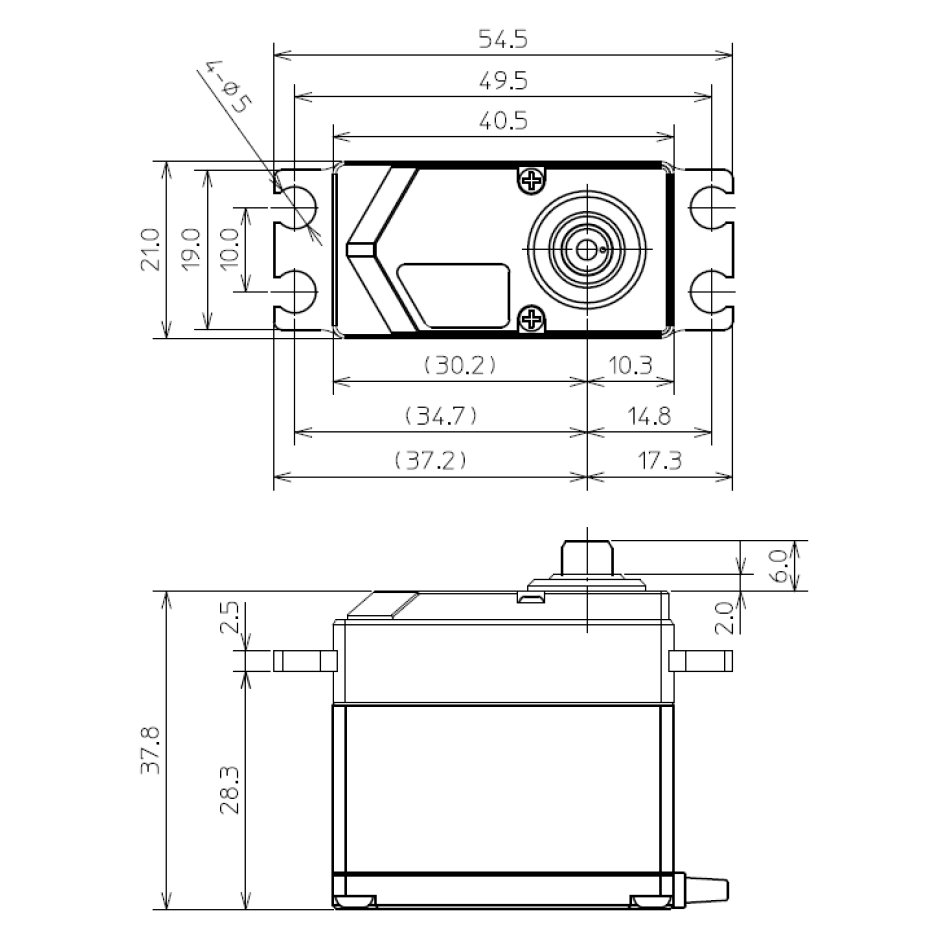

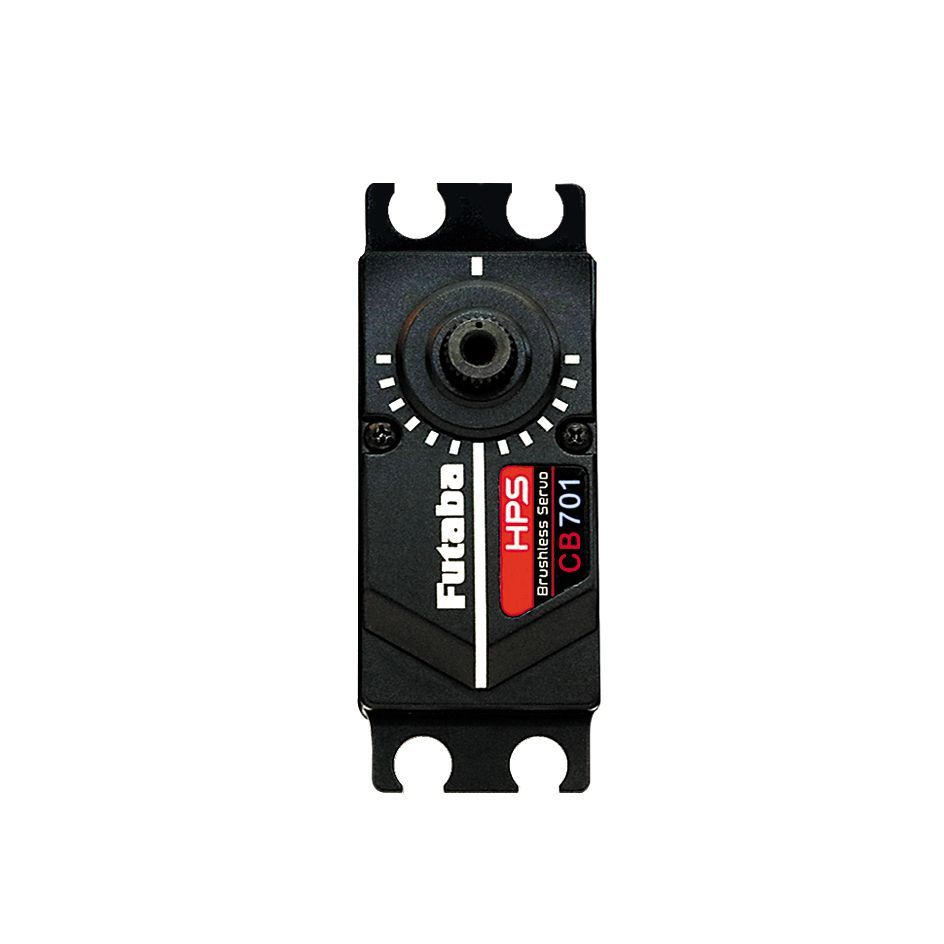

Torque: 49.0kgf・cm(7.4V) / 42.0kgf・cm(6.0V)・ Size/Weight: 40.5×21.0×37.8mm/75g

Speed at maximum voltage 0.08

Torque at maximum voltage 49

Case Material Metal

Torque Kg*cm 42.0 (6.0V)-49.0 (7.4V)

Speed sec/60° 0.09 (6.0V)-0.075 (7.4V)

Dimensions 40.5x21x37.7 mm

Weight 76 g

Ball bearings 2

Gears Metal

Manufacturer Futaba

Main gear 25T Standard

Motor type Brushless

Mounting Standard

Digital Electronics

Servo type Standard

Power supply 6.0, 7.4 V

Car Use

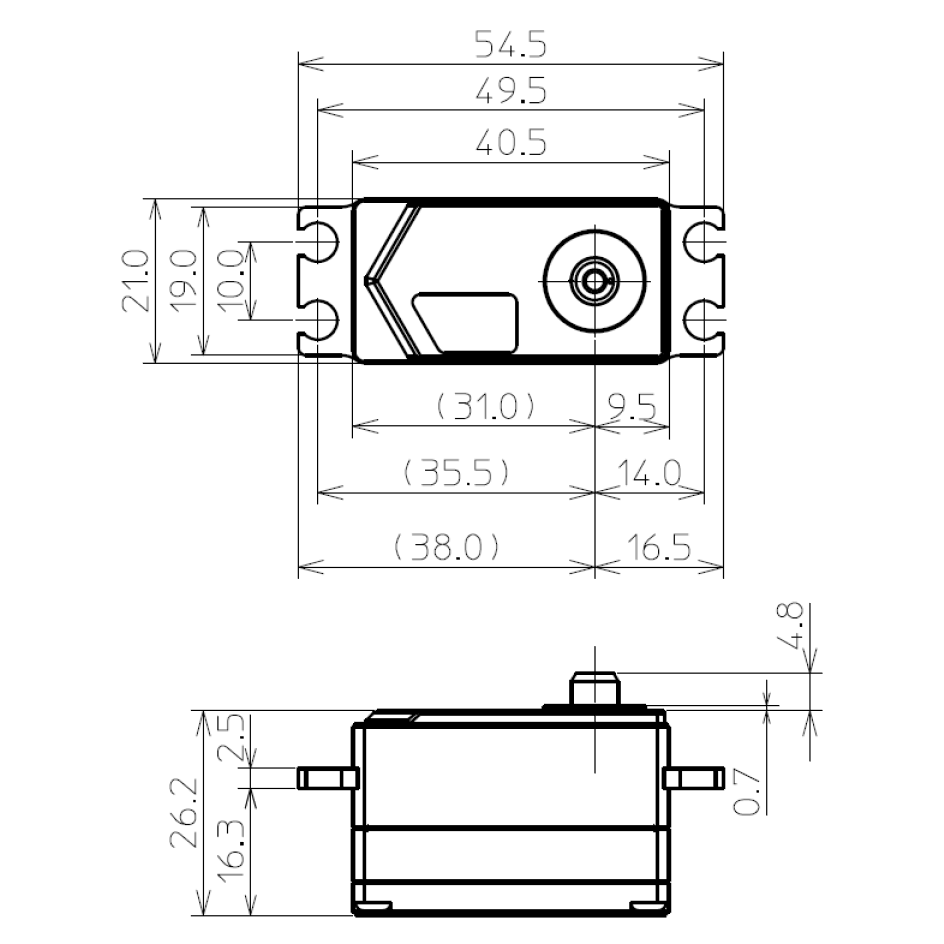

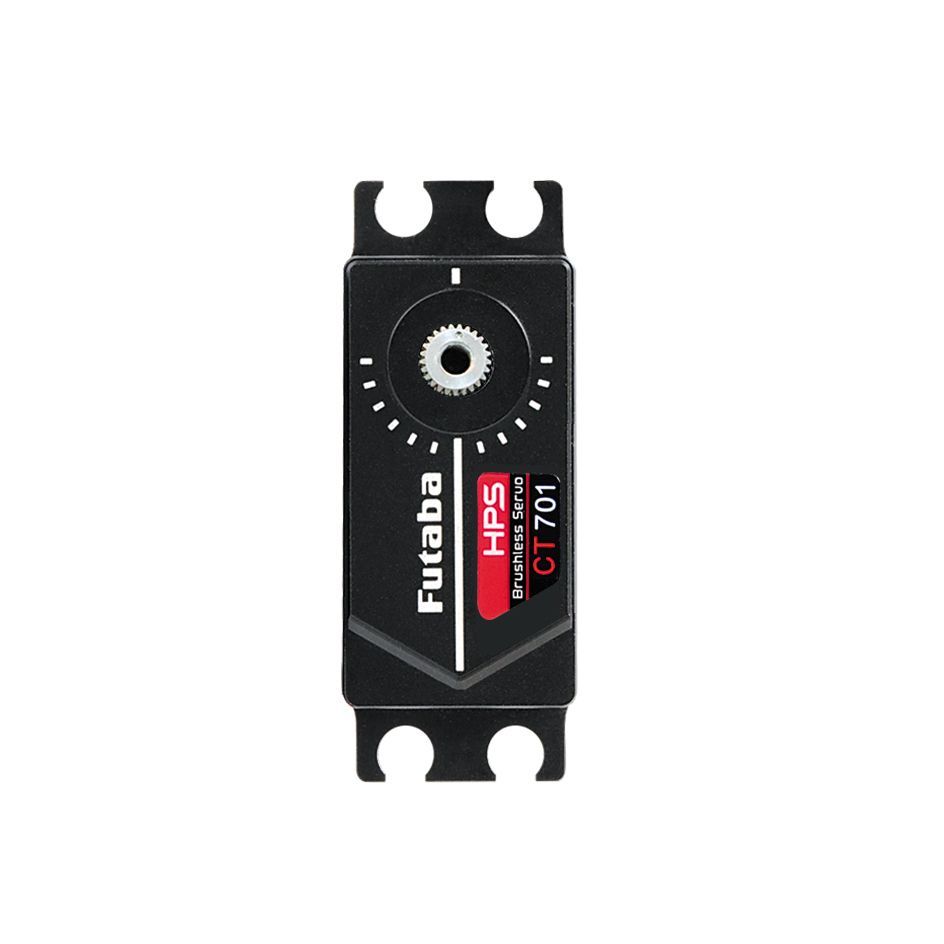

・Speed: 0.07sec/60°(7.4V) / 0.08sec/60°(6.0V)

・Torque: 30.0kgf・cm(7.4V) / 23.0kgf・cm(6.0V)

・Dimensions/Weight: 40.5×21.0×26.2 mm/53 g

FEATURES:

- Suitable for 1/10 scale RC cars on/off-road and drifting.

- Programmable Brushless/HV Servo.

- Customised New High Power Brushless Motor.

- Supports SR mode with T4PM/T7PX/T10PX

- Programmable and compatible with S.Bus and S.Bus2.

- Can be connected to a PC using the USB adapter CIU-2/-3 sold separately.

- Top/centre/bottom: aluminium housing

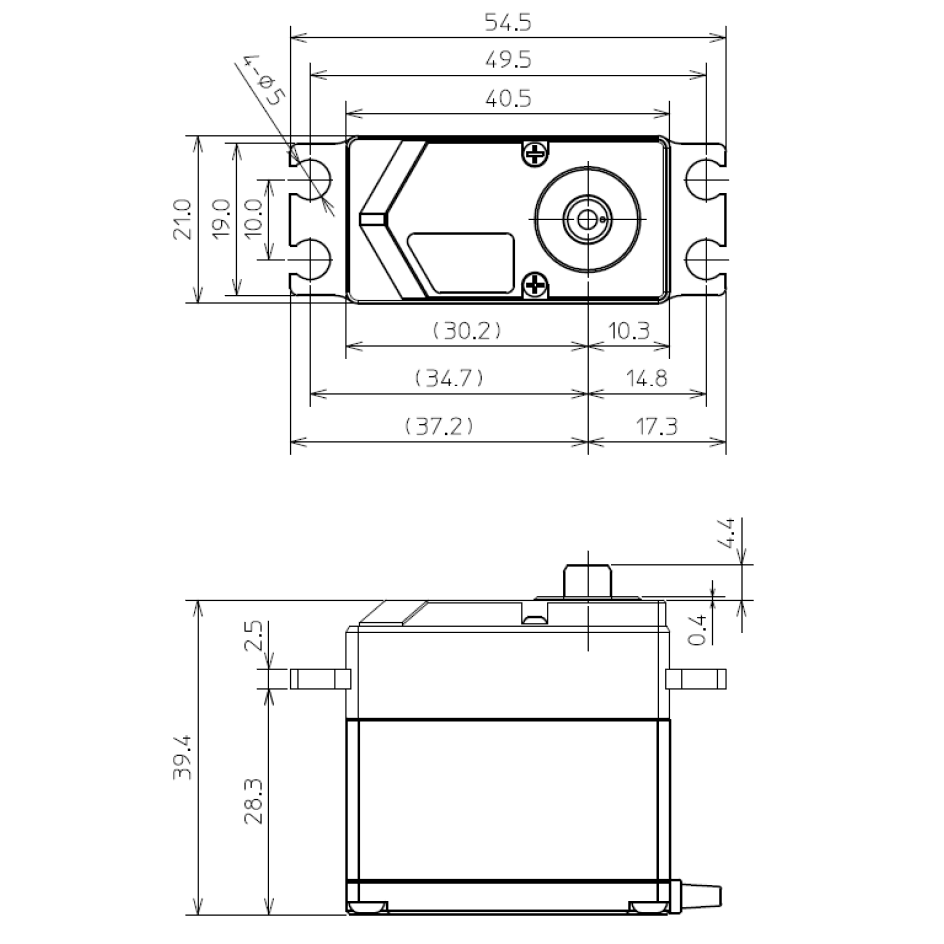

SPEED:

0.13 sec/60°at 6.6V

0.12 sec/60° at 7.4V

TORQUE:

68.0 kgf/cm at 6.6V

74.0 kgf/cm at 7.4V

SIZE:

40.5 mm x 21 mm x 39.4 mm

WEIGHT:

82 g

RATED VOLTAGE:

DC 6.0V-7.4V

OPERATING VOLTAGE:

DC 4.8-8.4V

Manufacturer Futaba

Main gear 25T Standard

Motor type Brushless

Mounting Standard

Digital Electronics

Servo type Standard

Power supply 6.0, 7.4 V

Speed at maximum voltage 0.12

Torque at maximum voltage 74

Case Material Metal

Torque Kg*cm 59.0 (6.0V)-74.0 (7.4V)

Speed sec/60° 0.14 (6.0V)-0.12 (7.4V)

Dimensions 41x21x37 mm

Weight 74 g

Ball bearings 2

Gears Metal

・Resin 1st gear and metal 2nd and 3rd gears

     construction

・Resin upper casing and aluminium middle/lower casing.

      lower.

・Cable length: 100 mm.

・PM control signal (N=1.520usS), S.Bus/S.Bus2

・3-Pole connector (Single. V+, GND)

・Dimensions-40.5 x 21.0 x 38.4 mm or 1.59 x 0.83

      x 1.52 inches

・Weight 74 g or 2.61 ounces

・Torque at 7.4V-37.0 Kgf*cm or 514 oz*in

・Speed at 7.4V-0.11 sec/60 degrees

・Resin first gear and metal second gear structure

・Resin upper case and aluminium middle/lower case.

・Cable length: 100 mm.

・PWM control signal (N=1,520usS), S.Bus/S.Bus2

・3-Pole connector (Single. V+, GND)

・Dimensions-40.5 x 21.0 x 38.4 mm or 1.59 x 0.83

      x 1.51 inches

・Weight 72 g or 2.54 ounces

・Torque at 7.4V-37.0 Kgf*cm or 514 oz*in

・Speed at 7.4V-0.11 sec/60 degrees

・Metal gear construction with resin casing

・Cable length: 300 mm

・PWM control signal (N=1,520uS), S.Bus/S.Bus2

・3-Pole connector (Single. V+, GND)

・Dimensions-33.0 x 15.0 x 27.1 mm or 1.30 x 0.59

      x 1.07 inch

Weight-28 g or 0.99 ounces

・Torque at 7.4 V-7.6 Kgf*cm or 106 oz*in

・Speed at 7.4 V-0.10 sec/60 degrees

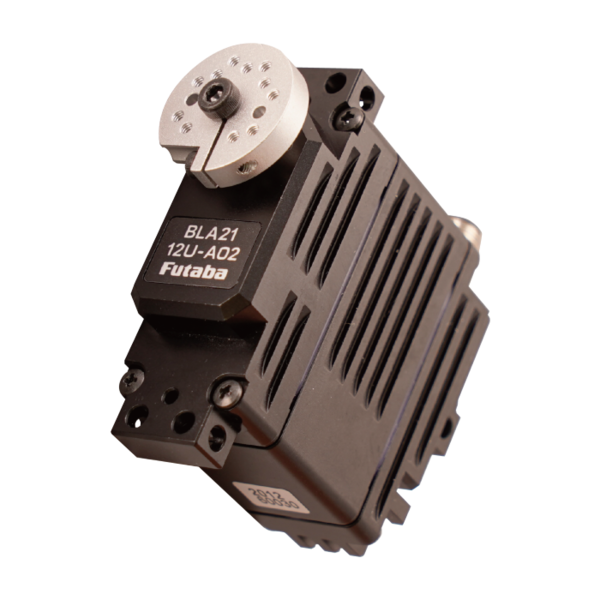

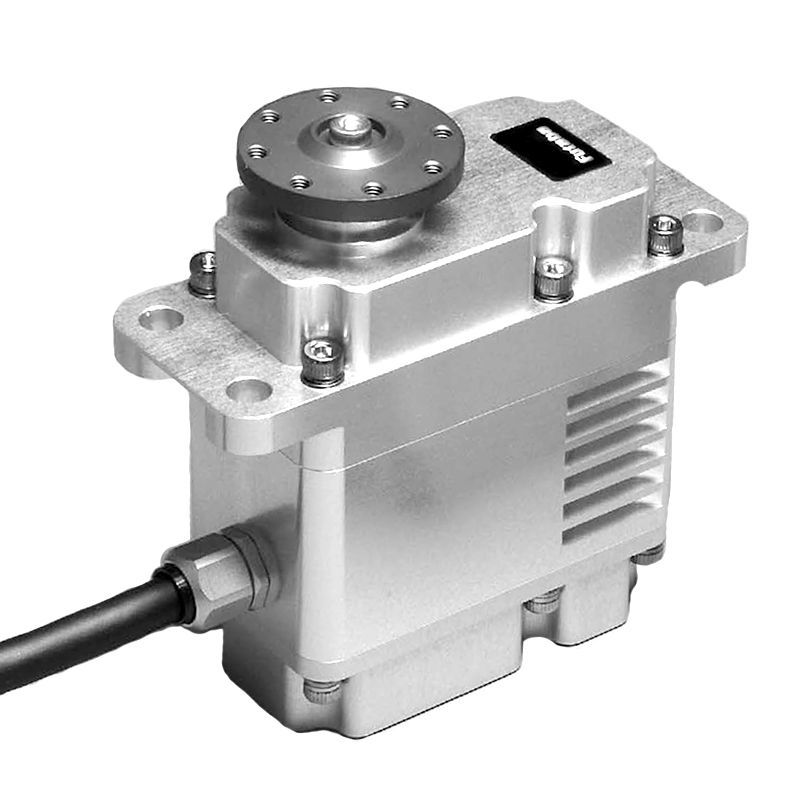

・Metal gear construction with aluminium casing

・Cable length- 400 mm

・IP64 Level water/dust resistance

・Interface 4-Pole connector ( Signal, V+, GND,
    Body-GND)

・Dimensions-40.5 x 21.0 x 38.4 mm or 1.59 x 0.83
     x 1.52 in

・Weigth 79 g or 2.79 oz

・Torque at 7.4V-37.0 Kgf*cm or 514 oz*in

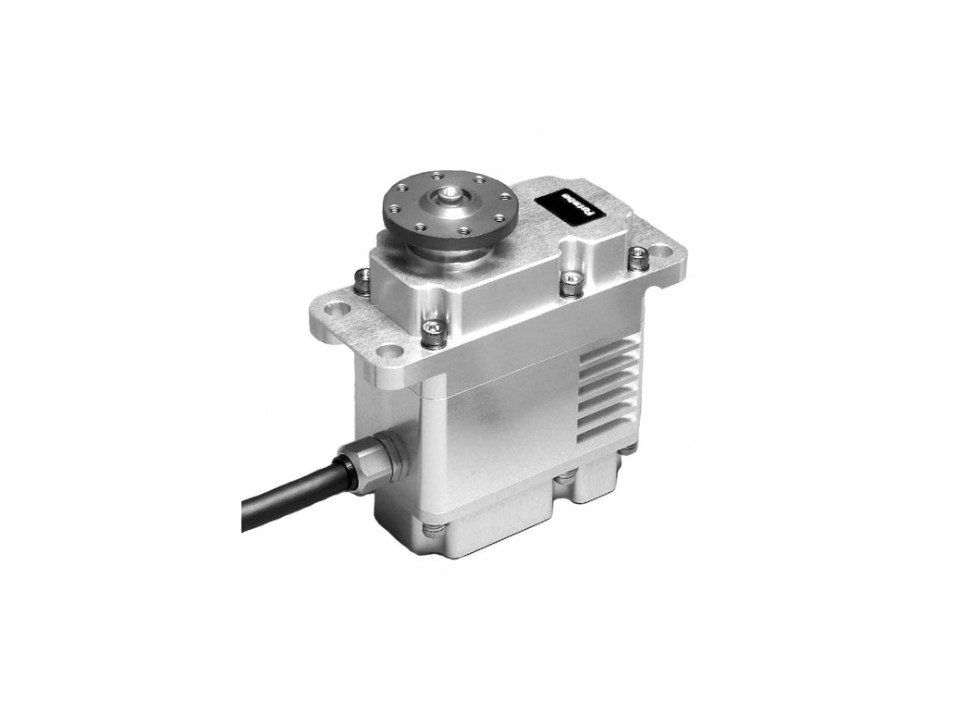

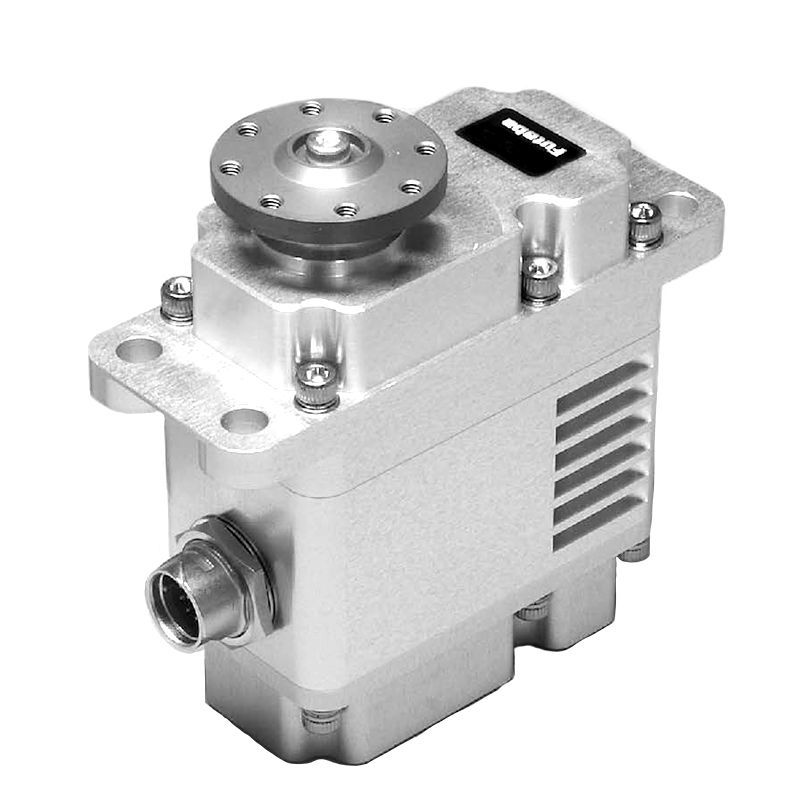

・Metal gear construction with aluminium casing

・Cable length- 400 mm

・IP64 Level water/dust resistance

・Interface 6-Pole connector ( Signal, V+, GND,
     Position Monitor  (+/-),Body-GND)

・Dimensions-40.5 x 21.0 x 38.4 mm or 1.59 x 0.83
     x 1.51 in

・Weigt 100 g or 3.53 oz

・Torque at 14.8V-44 Kgf*cm or 611 oz*in

・Speed at 14.8V- 0.1 sec/60 degrees

・Metal gear construction with aluminium casing

・Cable length- 400 mm

・IP64 Level water/dust resistance

・6-Pole connector ( Signal, V+, GND,Position
    Monitor (+/-), Body-GND)

・Dimensions-40.5 x 21.0 x 38.4 mm or 1.59 x 0.83
     x 1.51 in

・Weigth 79 g or 2.79 oz

・Torque at 7.4V-24.0 Kgf*cm or 333 oz*in

・Speed at 14.8V- 0.05 sec/60 degrees

– Metal gear construction.

– Aluminum casing.

– Position feedback.

– Cable length – 400 mm

– Control Signal – PWM (N=1,520μS), S.Bus/S.Bus2

– Dimensions – 40.5 x 21.0 x 38.4 mm or 1.59 x 0.83 x 1.51 in

– Weight – 100 g or 3.53 oz

– Torque at 28V – 43.0 kgf*cm or 597.2 oz*in

– Speed at 28V – 0.11 sec/60 degrees

BLA2FB21 (8.0V)

Brushless Digital Servo

– Metal gear construction with aluminium casing.

– Cable length – 400 mm

– Control Signal – PWM (N=760μS), S.Bus/S.Bus2

– IP64 level water/dust resistance

– 6-Pole Connector (Signal, V+, GND, Position Monitor (+/-), Body-GND)

– Dimensions – 40.0 x 20.0 x 36.8 mm or 1.57 x 0.79 x 1.45 in

– Weight – 89 g or 3.14 oz

– Torque at 8.0V – 8.4 kgf*cm or 117 oz*in

– Speed at 8.0V – 0.04 sec/60 degrees

– Metal gear construction with aluminium casing.

– Cable length – 150 mm

– Control Signal – PWM (N=760μS), S.Bus/S.Bus2

– IP64 level water/dust resistance

– 6-Pole Connector (Signal, V+, GND, Position Monitor (+/-), Body-GND)

– Dimensions – 40.0 x 20.0 x 36.8 mm or 1.57 x 0.79 x 1.45 in

– Weight – 89 g or 3.14 oz

– Torque at 8.0V – 8.4 kgf*cm or 117 oz*in

– Speed at 8.0V – 0.04 sec/60 degrees

– Metal gear construction with resin casing.

– Cable length – 200 mm

– Control Signal – PWM (N=1,520μS), S.Bus/S.Bus2

– 3-Pole Connector (Signal, V+, GND)

– Dimensions – 33.0 x 15.0 x 27.1 mm or 1.30 x 0.59 x 1.07 in

– Weight – 28 g or 0.99 oz

– Torque at 7.4V – 7.6 kgf*cm or 106 oz*in

– Speed at 7.4V – 0.10 sec/60 degrees

– Metal gear construction with aluminium casing.

– Cable length – 150 mm

– Control Signal – PWM, S.Bus/S.Bus2

– 3-Pole Connector (Signal, V+, GND)

– Dimensions – 28.6 x 13.0 x 33.0 mm or 1.13 x 0.51 x 1.3 in

– Weight – 33 g or 1.16 oz

– Torque at 7.4V – 7.35 kgf*cm or 102.1 oz*in

– Speed at 7.4V – 0.13 sec/60 degrees

– Dimensions – 39.4 x 15.0 x 29.4mm or 1.55 x 0.59 x 1.16 in

– Weight – 44 g or 1.55 oz

– Max Torque at 12.0V – 9.6 kgf * cm or 115.3 oz * in

– Speed at 12.0V – 0.16 sec/60°

– Dimensions – 39.4 x 15.0 x 29.4mm or 1.55 x 0.59 x 1.16 in

– Weight – 45 g or 1.59 oz

– Max Torque at 12.0V – 9.6 kgf * cm or 115.3 oz * in

– Speed at 12.0V – 0.17 sec/60°

– Dimensions – 48.0 x 21.0 x 51.5mm or 1.89 x 0.83 x 2.03in

– Weight – 130 g or 4.6 oz

– Max Torque at 7.4V – 48 kgf * cm or 667 oz * in

– Speed at 7.4V – 0.07 sec/60°

– Dimensions – 48.0 x 21.0 x 51.5mm or 1.89 x 0.83 x 2.03in

– Weight – 127 g or 4.5 oz

– Max Torque at 7.4V – 48 kgf * cm or 667 oz * in

– Speed at 7.4V – 0.07 sec/60°

– Dimensions – 48.0x 21.0 x 51.0mm or 1.89 x 0.83 x 2.01 in

– Weight – 127g or 4.48 oz

– Max Torque at 7.4V – 48.0 kgf * cm or 667 ozf * in

– Speed at 7.4V – 0.07 sec/60°

– Dimensions – 48.0x 21.0 x 51.5mm or 1.89 x 0.83 x 2.03 in

– Weight – 130g or 4.59 oz

– Max Torque at 12.0V – 50.0 kgf * cm or 694 ozf * in

– Speed at 12.0V – 0.09 sec/60°

– Dimensions – 48.0x 21.0 x 51.0mm or 1.89 x 0.83 x 2.01 in

– Weight – 127g or 4.48 oz

– Max Torque at 12.0V – 50.0 kgf * cm or 694 ozf * in

– Speed at 12.0V – 0.09 sec/60°

– Dimensions – 48.0x 21.0 x 51.0mm or 1.89 x 0.83 x 2.01 in

– Weight – 127g or 4.48 oz

– Max Torque at 12.0V – 50.0 kgf * cm or 694 ozf * in

– Speed at 12.0V – 0.09 sec/60°

– Dimensions – 48.0x 21.0 x 51.5mm or 1.89 x 0.83 x 2.03 in

– Weight – 130g or 4.59 oz

– Max Torque at 28.0V – 46.0 kgf * cm or 639 ozf * in

– Speed at 28.0V – 0.07 sec/60°

– Dimensions – 48.0x 21.0 x 51.0mm or 1.89 x 0.83 x 2.02 in

– Weight – 127g or 4.48 oz

– Max Torque at 28.0V – 46.0 kgf * cm or 639 ozf * in

– Speed at 28.0V – 0.07 sec/60°

– Dimensions – 48.0x 21.0 x 51.0mm or 1.89 x 0.83 x 2.02 in

– Weight – 127g or 4.48 oz

– Max Torque at 28.0V – 46.0 kgf * cm or 639 ozf * in

– Speed at 28.0V – 0.07 sec/60°

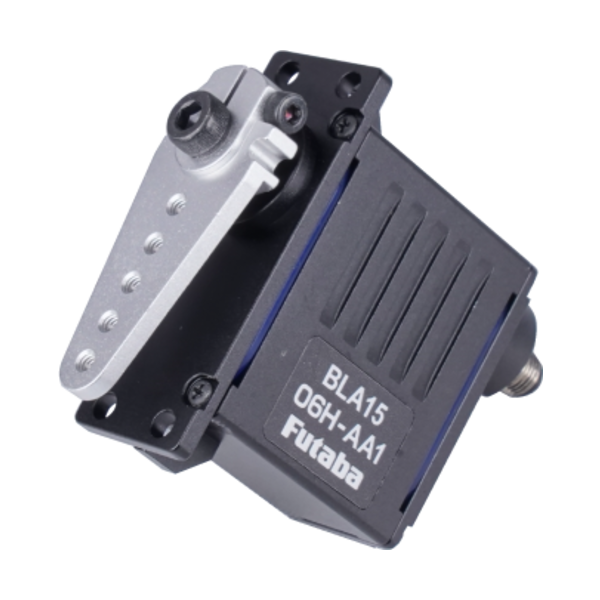

BLA15-06H-AA1

Digital Servo

– Dimensions – 39.4 x 15.0 x 29.4mm or 1.55 x 0.59 x 1.16 in

– Weight – 44 g or 1.55 oz

– Max Torque at 7.4V – 10.3 kgf * cm or 143 oz * in

– Speed at 7.4V – 0.15 sec/60°

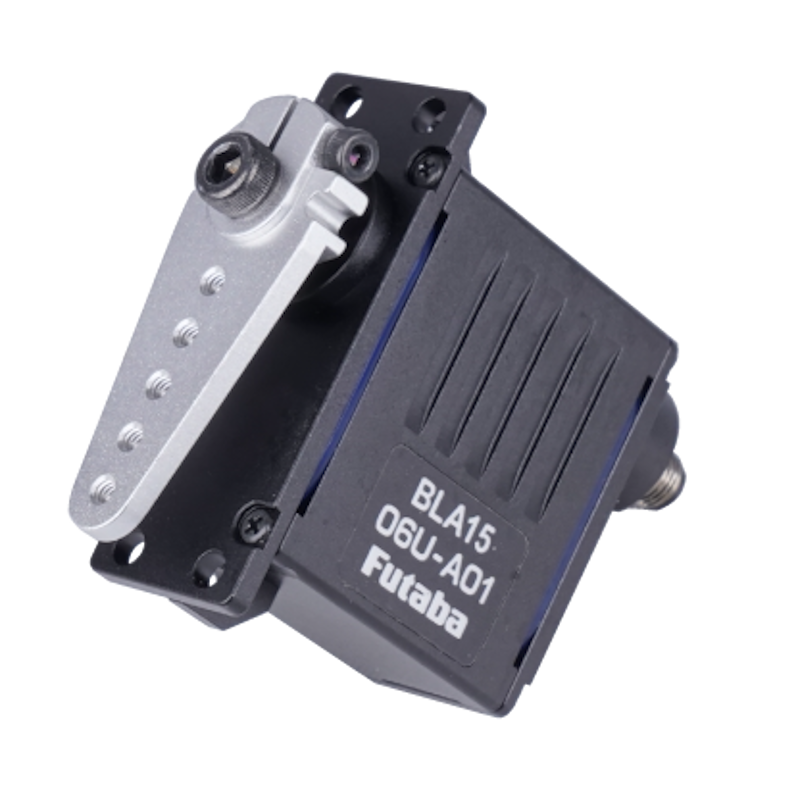

BLA15-06U-A01

Digital Servo

– Dimensions – 30.3 x 15.0 x 31.4mm or 1.19 x 0.59 x 1.24in

– Weight – 44 g or 1.55 oz

– Max Torque at 7.4V – 10.3 kgf * cm or 143 oz * in

– Speed at 7.4V – 0.14 sec/60°

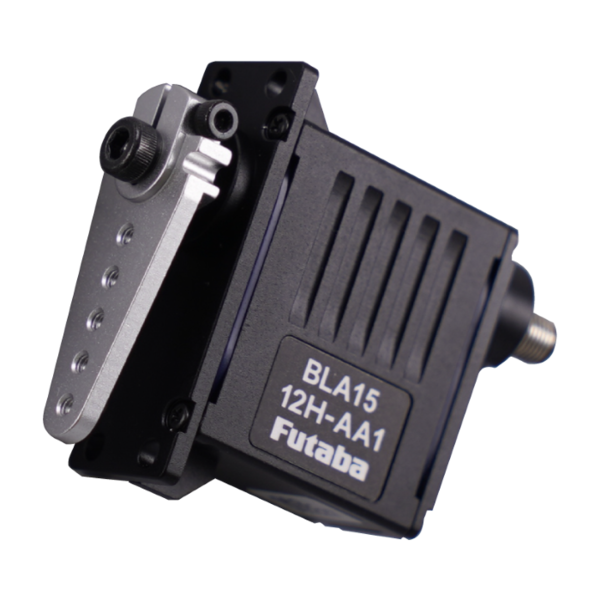

BLA15-12H-AA1

Digital Servo

– Dimensions – 39.4 x 15.0 x 29.4mm or 1.55 x 0.59 x 1.16 in

– Weight – 44 g or 1.55 oz

– Max Torque at 12.0V – 9.6 kgf * cm or 115.3 oz * in

– Speed at 12.0V – 0.16 sec/60°

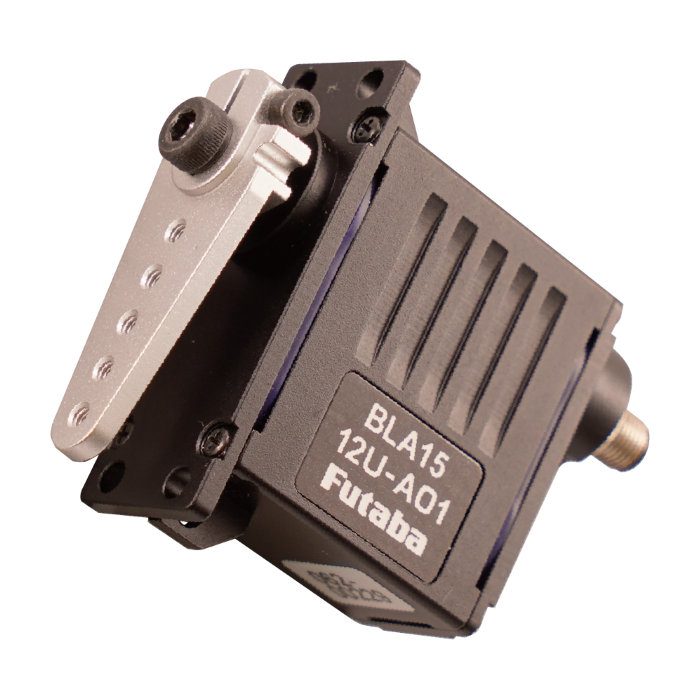

BLA15-12U-A01

Digital Servo

– Dimensions – 39.4 x 15.0 x 29.4mm or 1.55 x 0.59 x 1.16 in

– Weight – 45 g or 1.59 oz

– Max Torque at 12.0V – 9.6 kgf * cm or 115.3 oz * in

– Speed at 12.0V – 0.17 sec/60°

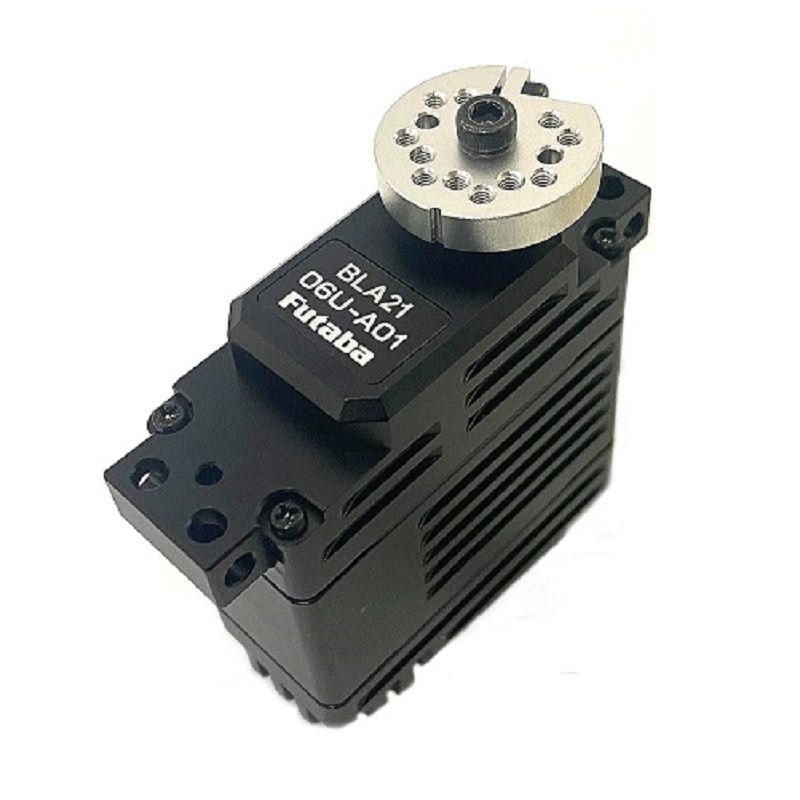

BLA21-06U-A01

Digital Servo

– Dimensions – 48.0 x 21.0 x 51.5mm or 1.89 x 0.83 x 2.03in

– Weight – 130 g or 4.6 oz

– Max Torque at 7.4V – 48 kgf * cm or 667 oz * in

– Speed at 7.4V – 0.07 sec/60°

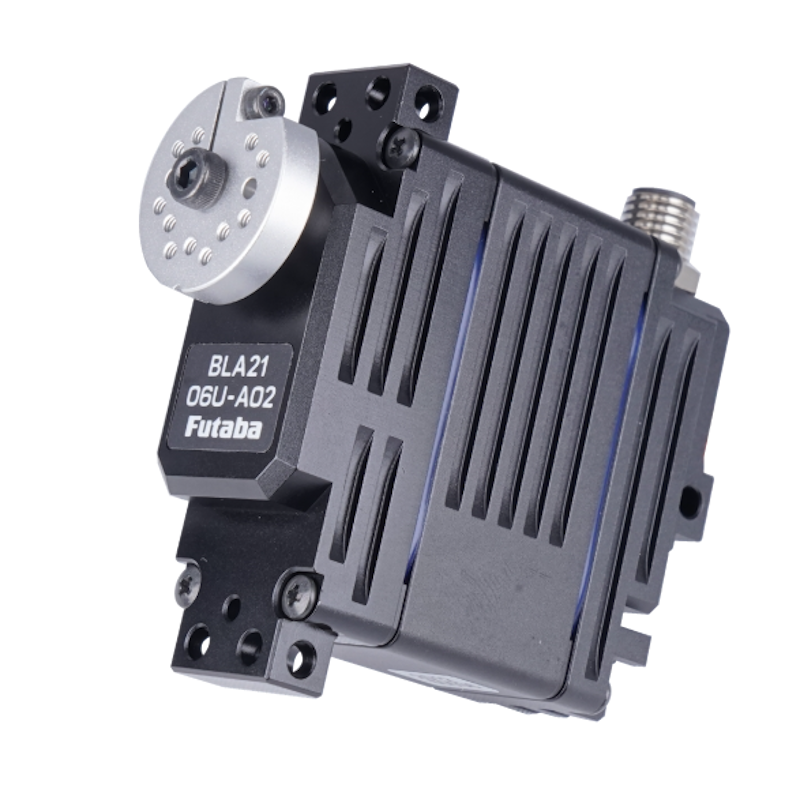

BLA21-06U-A02

Digital Servo

– Dimensions – 48.0 x 21.0 x 51.5mm or 1.89 x 0.83 x 2.03in

– Weight – 127 g or 4.5 oz

– Max Torque at 7.4V – 48 kgf * cm or 667 oz * in

– Speed at 7.4V – 0.07 sec/60°

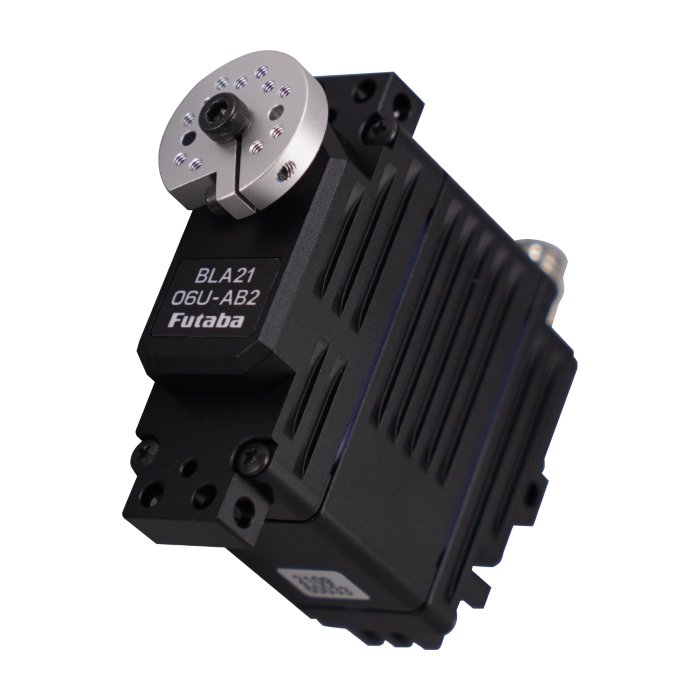

BLA21-06U-AB2

Digital Servo

– Dimensions – 48.0x 21.0 x 51.0mm or 1.89 x 0.83 x 2.01 in

– Weight – 127g or 4.48 oz

– Max Torque at 7.4V – 48.0 kgf * cm or 667 ozf * in

– Speed at 7.4V – 0.07 sec/60°

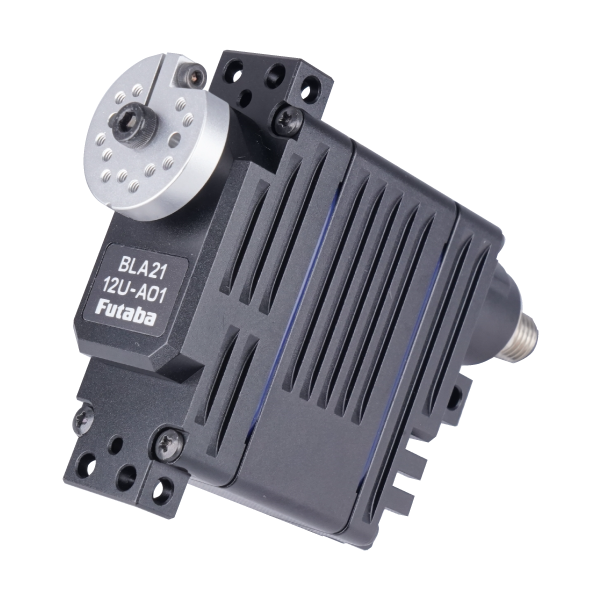

BLA21-12U-A01

Digital Servo

– Dimensions – 48.0x 21.0 x 51.5mm or 1.89 x 0.83 x 2.03 in

– Weight – 130g or 4.59 oz

– Max Torque at 12.0V – 50.0 kgf * cm or 694 ozf * in

– Speed at 12.0V – 0.09 sec/60°

BLA21-12U-A02

Digital Servo

– Dimensions – 48.0x 21.0 x 51.0mm or 1.89 x 0.83 x 2.01 in

– Weight – 127g or 4.48 oz

– Max Torque at 12.0V – 50.0 kgf * cm or 694 ozf * in

– Speed at 12.0V – 0.09 sec/60°

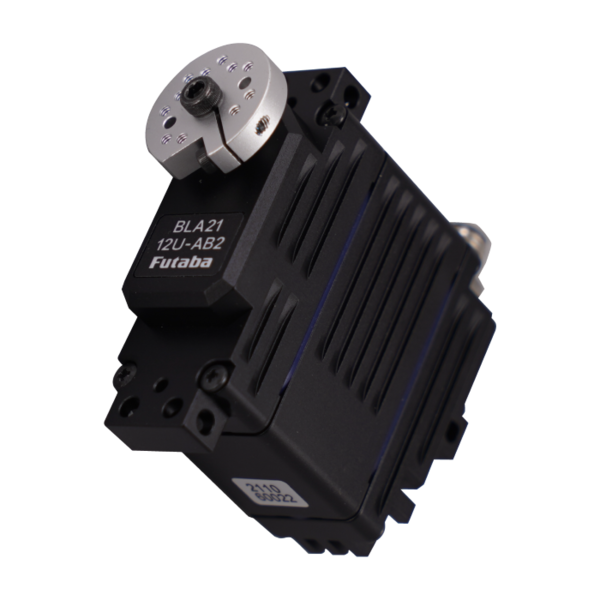

BLA21-12U-AB2

Digital Servo

– Dimensions – 48.0x 21.0 x 51.0mm or 1.89 x 0.83 x 2.01 in

– Weight – 127g or 4.48 oz

– Max Torque at 12.0V – 50.0 kgf * cm or 694 ozf * in

– Speed at 12.0V – 0.09 sec/60°

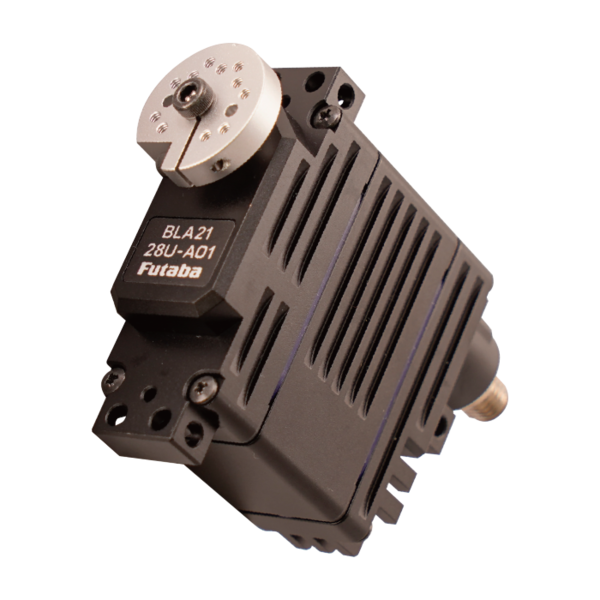

BLA21-28U-A01

Digital Servo

– Dimensions – 48.0x 21.0 x 51.5mm or 1.89 x 0.83 x 2.03 in

– Weight – 130g or 4.59 oz

– Max Torque at 28.0V – 46.0 kgf * cm or 639 ozf * in

– Speed at 28.0V – 0.07 sec/60°

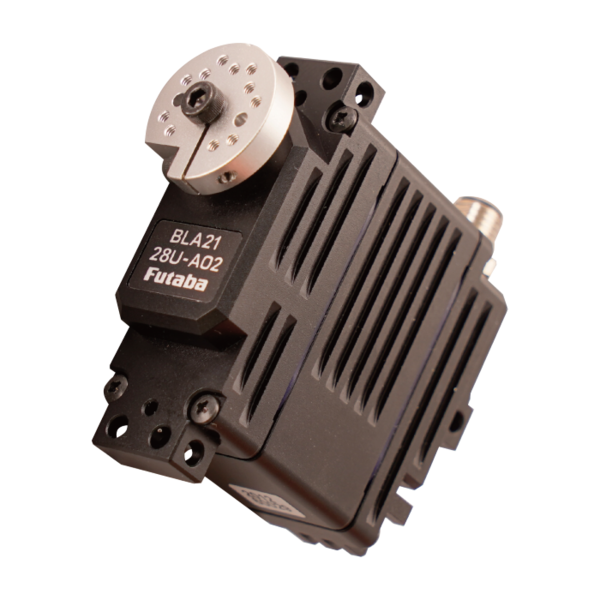

BLA21-28U-A02

Digital Servo

– Dimensions – 48.0x 21.0 x 51.0mm or 1.89 x 0.83 x 2.02 in

– Weight – 127g or 4.48 oz

– Max Torque at 28.0V – 46.0 kgf * cm or 639 ozf * in

– Speed at 28.0V – 0.07 sec/60°

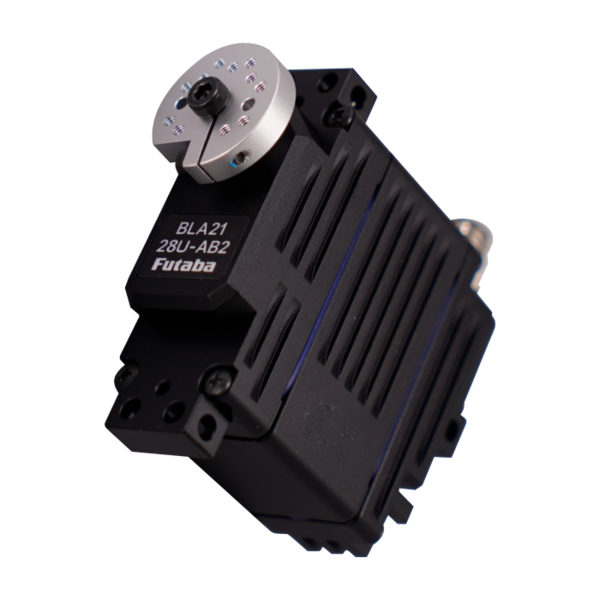

BLA21-28U-AB2

Digital Servo

– Dimensions – 48.0x 21.0 x 51.0mm or 1.89 x 0.83 x 2.02 in

– Weight – 127g or 4.48 oz

– Max Torque at 28.0V – 46.0 kgf * cm or 639 ozf * in

– Speed at 28.0V – 0.07 sec/60°

・Dimensioni/Peso: 40.4×19.8×36.0mm/36g

*-Power supply: 4.8-6.0V

・All resin gears

・S.BUS system

S-U300 SERVO

FUTABA's standard S.BUS2 servo.

The S-U300 servo replaces previous Futaba servos such as: S3003, S148, FS100 and S3005.

Features:

Powerful S.BUS2 digital servo with plastic gears

Robust plastic housing

High resolution

High precision

Low-wear potentiometer with indirect drive

Specifications

Type Digital

Gear type Nylon

Speed sec/60° (4.8-6.0)V 0.23-0.19

Torque Kg*cm (4.8-6.0)V 3.5-4.5

Dimensions mm 40.4x19.8x36.0

Weight g 36.0

Futaba connector

Speed: 0.17s/60° 6.6V - 0.15s/60° 7.4V

Force: 5.8Kgf at 6.6V - 6.5Kgf at 7.4V

Dimensions: 40x20x38.1 mm

Weight: 49 gr.

Power supply: 6.0V to 7.4V

Do not use with dry batteries

SERVO S-AG300 2.5kG 0.065 7.4V ALIANTS

High-performance ultramicro servo

For Glider/F3K

Programmable/HV coreless servo.

Programmable and compatible with S.Bus and S.Bus2 systems.

Can be connected to a PC using the USB adapter CIU-2/-3 sold separately.

Metal end gear

Aluminium housing

Specifications

Speed (3.8-7.4)V sec/60º 0.13/0.065

Torque (3.8-7.4)V Kg*cm 1.5/2.5

Dimensions mm 23.5x8.0x19.7

Weight g 10.8

Operating voltage DC V 3.8-8.4

・All resin gears

・S.BUS system

・Speed: 0.16 sec/60°(7.4 V) / 0.18 sec/60°(6.6 V)

・Torque: 3.9 kgf・cm(7.4 V) / 3.5 kgf・cm(6.6V)

・Dimensions/Weight: 40.5×20.0×36.1 mm/36 g

SPEED:

0.18 sec/60°at 6.6V

0.16 sec/60° at 7.4V

TORQUE:

3.5 kgf/cm at 6.6V

48.6 ozf/in at 6.6V

3.9 kgf/cm at 7.4V

54.2 ozf/in at 7.4V

SIZE:

40 mm x 20 mm x 36.1 mm

1.59 in x 0.79 in x 1.42 in

WEIGHT:

36 g

1.30 oz

Plastic Gearing

6mm/25T Spline

3Pole Cored Motor

Digital servo

The power supply is 4.8V and dry batteries cannot be used.

・2-3 phase metal gear

・Metal final gear

・Speed: 0.24 sec/60°(4.8 V)

・Torque: 3.7 kgf・cm(4.8 V)

・Dimensions/Weight: 30.0 x 10.8 x 29.0 mm / 23 g

・Speed: 0.10 sec/60°(4.8 V) / 0.09 sec/60°(6.0 V)

・Torque: 1.5 kgf・ cm(4.8 V) / 1.7 kgf・ cm(6.0 V)

・Dimensions/Weight: 21.8 x 11.0 x 19.8 mm/7.9 g

A digital servo

The power supply is 4.8-6.0 V.

・All-resin gear

・Speed: 0.13 sec/60°(7.4 V) / 0.14 sec/60°(6.6 V)

・Torque: 7.9 kgf・ cm(7.4 ) V) / 7.1 kgf cm(6.6 V)

Dimensions/Weight: 40.0 x 20.0 x 38.1 mm / 39 g

・All resin gears

・S.BUS system

SERVO S-U400 8Kg. 0.14 7.4v

S-BUS2 PROGRAMMABLE STANDARD DIGITAL SERVO

Features

Operating voltage V 6.0-7.4

Speed sec/60º (6.0-6.6-7.4)V 0.15-0.14-0.13

Torque Kg*cm (6.0-6.6-7.4)V 6.5-7.1-7.9

Motor 3 poles cored

Gears Plastic

Bearings 1BB+1MB

Dimensions mm 40.0x38.1x20.0

Weight g 39,0

FEATURES

· Powerful S.BUS2 digital servo with plastic gears

· High voltage

· Low-wear potentiometer

· Robust plastic housing

· High resolution

· High positioning accuracy

The FUTABA S-U400 is an economical S.BUS2 HV universal servo. With a driving force of 8 kgcm and a drive speed of 0.14 s / 60°, the S-U400 ranks above the S-U300 in terms of performance. Due to its performance values, it is predestined for applications in RC cars, boats and model aircraft. The previous servo types S3010, S3152 and S3072HV are replaced with the S-U400.

Programmable via S.BUS2 technology. Of course, all S.BUS2 servos can be connected to conventional receivers with PWM modulation. The servos can be addressed in several ways:

1. With the handy SBC-1 programmer

2. On the PC with the CIU-3 USB adapter

3. At the S.BUS connection of the transmitter

The following parameters can be set:

• S.BUS channel assignment
• Servo reversing
• Servo type (normal/retractable landing gear)
• Soft start (on/off)
• Mode selection in case of no hold or free signal
• Soft Servo Run (On / Off)
• Servo Position (servo tester)
• Servo centre adjustment +/- 300 µs (approx. 30 degrees)
• Servo speed, 0.39 - 9 seconds for 45 degrees
• Dead zone (dead band) setting
• Adjustment of left and right servo travel separately, approx. 50 - 175%.
• Starting power
• Damping
• Holding power
• ID storage

Technical characteristics:

Dimensions : 40x20x34.8 mm

Weight: 45g

Speed: 0.15 sec/60° (4.8 v)

Torque: 9.6 kg/cm (4.8 v)

2 bearings

metal pinions

General characteristics of servos with brushless motor

- At least 5 times longer life than a motor with brushes.

- 30% faster response time.

- Greater shock and vibration resistance.

- Smoother movements.

- Same power required by brush motors.

- Same size as standard servos.

- Double bearing for greater precision and smoothness.

- Samarium-cobalt magnets for more power.

Terms used to describe features (not available on all BLS servos)

Waterproof

Water-protected housing seals with rubber gaskets that are particularly suitable for use in Buggy and RG and Track cars.

Metal gear

Recommended where very hard knocks put the transmission under severe strain.

Ball Bearing

They ensure great precision by eliminating gear backlash.

Aluminium centre case

Ensures high heat dissipation and shock resistance.

Technical data

Dimensions: 40.0x20x35.0mm

Weight: 44 g

Speed: 0.15 sec/60° (4.8V)

Torque: 8.8 Kg.cm (4.8V)

Features

Bearing 2

Metal gear NO

Waterproof YES

Central case Nylon

Brushless Servo BLS254 4.8 V 3.8 kg 0.06 sec.

General characteristics of servos with Brushless motor

- At least 5 times longer life than a motor with brushes

- 30% faster response time

- Greater shock and vibration resistance

- Smoother movements

- Same power required by brush motors

- Same size as standard servos

- Double bearing for greater precision and smoothness

- Samarium-Cobalt magnets for more power

Waterproof

Water-protected casing seals with rubber gaskets particularly suitable for use in Buggy and RG and Track cars

Ball bearing

Ensures high precision by eliminating gear backlash.

Product specifications:

 Category: Gyro High-Speed

 Torque (4.8 V): 3.8 kg/cm

 Speed (4.8 V): 0.06 sec/60

 Dimensions: 40x20x36.8 mm

 Weight: 58 gr

 Gears: Metal

 Bearings: 2

 Motor: Brushless

Torque: 49.0kgf・cm(7.4V) / 42.0kgf・cm(6.0V)・ Size/Weight: 40.5×21.0×37.8mm/75g

The speed at maximum voltage 0.08

Torque at a maximum voltage of 49

Case Material Metal

Torque Kg*cm 42.0 (6.0V)-49.0 (7.4V)

Speed sec/60° 0.09 (6.0V)-0.075 (7.4V)

Dimensions 40.5x21x37.7 mm

Weight 76 g

Ball bearings 2

Gears Metal

Manufacturer Futaba

Main gear 25T Standard

Motor type Brushless

Mounting Standard

Digital Electronics

Servo type Standard

Power supply 6.0, 7.4 V

Use: Car

・Speed: 0.07sec/60°(7.4V) / 0.08sec/60°(6.0V)

・Torque: 30.0kgf・cm(7.4V) / 23.0kgf・cm(6.0V)

・Dimensions/Weight: 40.5×21.0×26.2 mm/53 g

FEATURES:

- Suitable for 1/10 scale RC cars on/off-road and drifting.

- Programmable Brushless/HV Servo.

- Customised New High Power Brushless Motor.

- Supports SR mode with T4PM/T7PX/T10PX

- Programmable and compatible with S.Bus and S.Bus2.

- Can be connected to a PC using the USB adapter CIU-2/-3 sold separately.

- Top/centre/bottom: aluminium housing

SPEED:

0.13 sec/60°at 6.6V

0.12 sec/60° at 7.4V

TORQUE:

68.0 kgf/cm at 6.6V

74.0 kgf/cm at 7.4V

SIZE:

40.5 mm x 21 mm x 39.4 mm

WEIGHT:

82 g

RATED VOLTAGE:

DC 6.0V-7.4V

OPERATING VOLTAGE:

DC 4.8-8.4V

Manufacturer Futaba

Main gear 25T Standard

Motor type Brushless

Mounting Standard

Digital Electronics

Servo type Standard

Power supply 6.0, 7.4 V

Speed at maximum voltage 0.12

Torque at maximum voltage 74

Case Material Metal

Torque Kg*cm 59.0 (6.0V)-74.0 (7.4V)

Speed sec/60° 0.14 (6.0V)-0.12 (7.4V)

Dimensions 41x21x37 mm

Weight 74 g

Ball bearings 2

Gears Metal
